Metal Coating Thickness Tester, Metal Coating Thickness Meter

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	DahoMeter
Certification:	CE,FCC
Model Number:	KCT-300

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	USD99 to USD399
Packaging Details:	standard exporting package
Delivery Time:	5-7 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Usage:	Coating Thickness Tester	Measuring Range:	Standard 0~1250μm (MAX 10000μm With Probe F10)
Working Principle:	Magnetic & Eddy	Substrate:	FE / NFe Base, Depends On Probes
Testing Before Delivery:	Yes	After-sale Customer Service:	Yes

Metal Coating Thickness Tester, Metal Coating Thickness Meter

Product Application

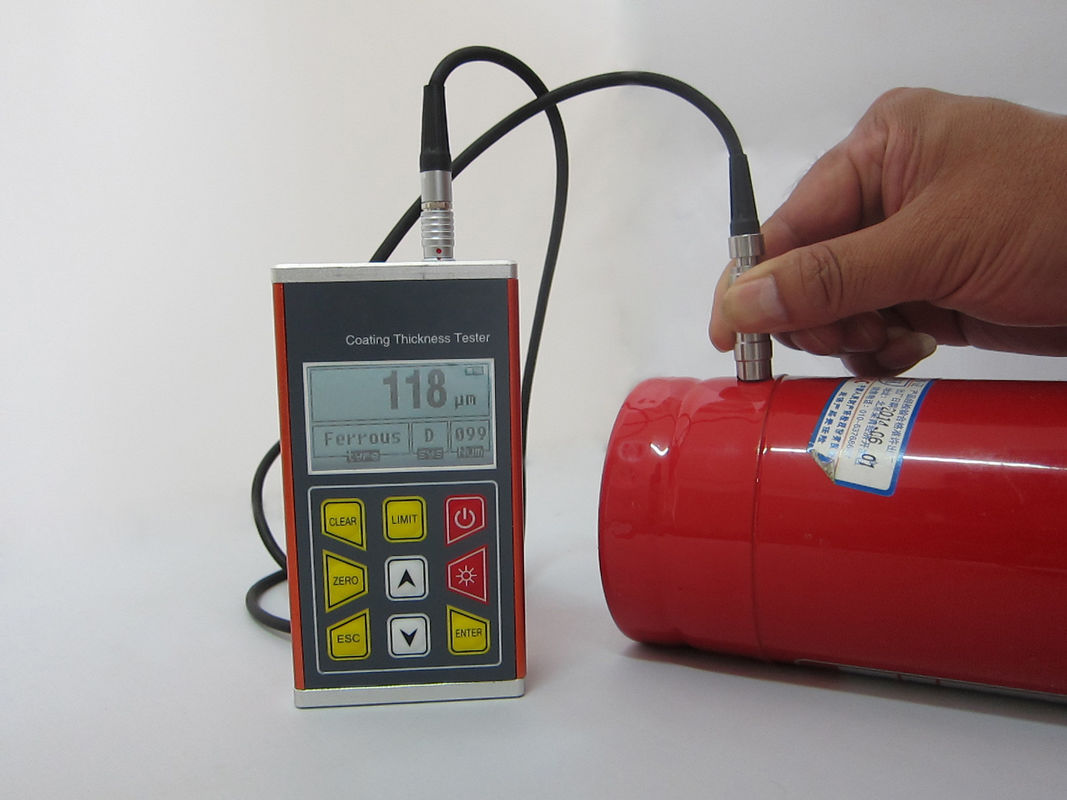

KCT300 is a type of portable measuring gauge, capable of measuring rapidly, non destructively, and precisely the thickness of coating and cladding material. It is suitable for on site as well as for laboratory uses. Via the using of different probes, many sorts of measuring can be satisfied by the gauge. It can be applied comprehensively to manufacturing, metal processing and chemical profession as well as to commercial inspection. It is indispensable for the major of materials protection.

Metal Coating Thickness Tester, Metal Coating Thickness Meter

Main Features

*Various probes optional, probe auto matching.

*Durable ruby probe, more wear and precise.

*Full metal shell design, sturdy, portable, high reliability.

*Alarm function when overrun the settable limiting range.

*Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy.

*Large storage, easy to delete single or multiple saved values..

*PC software optional, convenient the data transmission, analysis, printing etc.

Technical Parameter

Measuring Range	Standard 0~1250μm (MAX 10000μm with probe F10)
Resolution	0.1μm/1μm
Working Principle	Magnetic & Eddy
Substrate	FE / NFe base, depends on probes
Accuracy	±2%H+1μm Note: H is thickness reading
Display	128x64 LCD with backlight
Memory	5 files x 99 values
Unit Switch	Metric (μm) Imperial (mil)
Working Temperature	Operation Temp. :-10°C~50°C Storage Temp. :-30°C-70°C
Power	AA battery 2pcs (Non-aviation transport)
Size	125x67x31mm
Weight	340g
