Place of Origin: | Dongguan |
Brand Name: | DahoMeter |
Certification: | FCC,ISO |
Model Number: | KT-320 |
Minimum Order Quantity: | one set |
---|---|
Price: | USD99 to USD399 |
Packaging Details: | standard exporting package |
Delivery Time: | 3-7 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 sets per month |
Usage: | Digital Surface Roughness Tester | Testing Before Delivery: | Yes |
---|---|---|---|
After-sale Customer Service: | Yes |

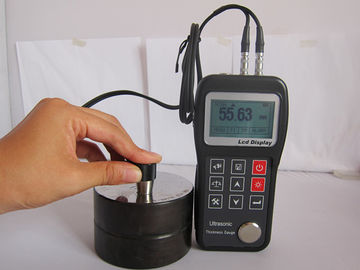

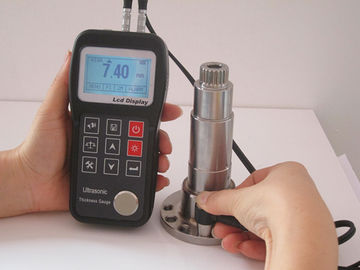

for measuring the thickness of hull,oil and gas pipeline,high pressure vessel,boiler.the testing objects would be metal materials,or plastic,nylon.,etc non metallic materials.
*With PC software, can check and print testing results on computer;
*Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasound;
*Can be equipped with a variety of different frequency, chip size, double crystal probe use;
*Have probe zero calibration, a two-point calibration function, can be automatically on system error correction;
*Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement;
*With functions of coupling status alert;

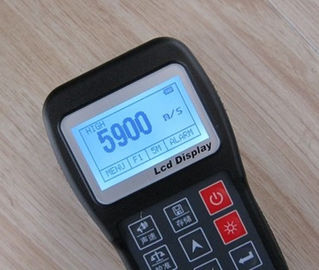

*With LED backlight, convenient to use in dark environment ;
*Battery indicator function, real-time display remaining power;
*With automatic power saving function dormancy, automatic shutdown etc;
*Small, portable, high accuracy, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference.
Measuring Range | 0.75~300mm (0.03~11.8inch) depends on probe Standard probe: 1.2~300mm |
Sound Velocity Range | 1000~9999m/s (0.039~0.394in/μs) |
Display Resolution | 0.01mm(lower than 100.0mm) 0.1mm(more than 99.99mm) |
Accuracy | ±(0.5% thickness+0.04)mm, depends on materials and conditions |
Data Memory | 5 files x 100 values, 5 value of sound velocity |
PC Software | Yes |
Power | AA battery 2pcs (working time 250 hours if backlight off) |
Working Temperature | -10°C~60°C |
Size | 150x74x32mm |
Weight | 238g |
