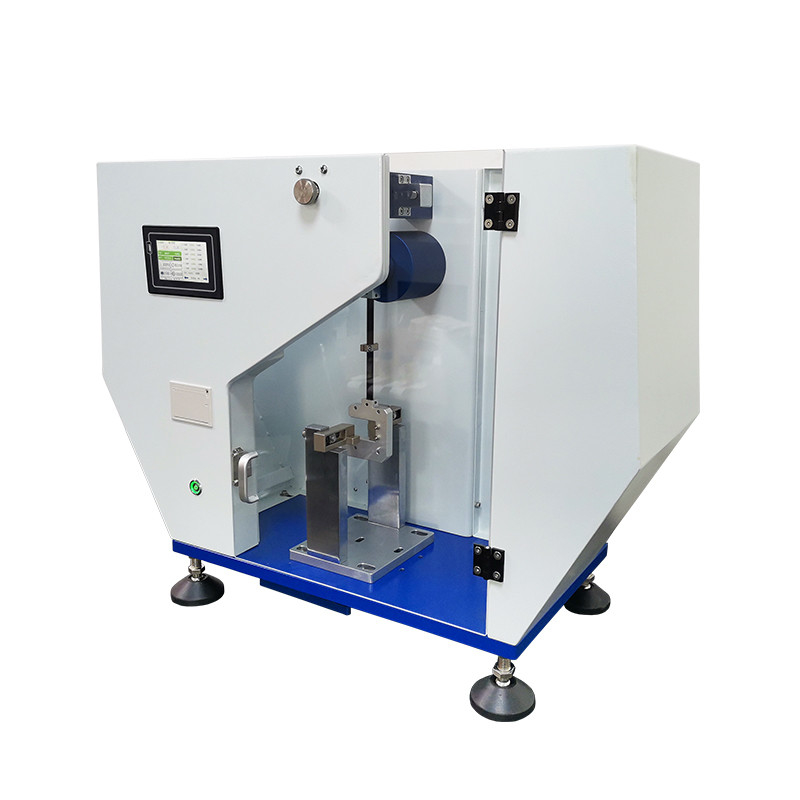

Charpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing Equipment

Charpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing Equipment

    • Charpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing Equipment
    • Charpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing Equipment
    • Charpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing Equipment
    • Charpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing Equipment
    • Charpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing Equipment
    • Charpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing Equipment
  • Charpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing Equipment

    Product Details:

    Place of Origin: Dongguan, Guangdong
    Brand Name: DahoMeter
    Certification: CE, FCC
    Model Number: HT-1043-25D

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD999 to 2999 per unit
    Packaging Details: standard exporting wooden package
    Delivery Time: 5 to 8 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Charpy Pendulum Impact Tester Testing Before Delivery: Yes
    After-sale Customer Service: Yes



    Charpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing Equipment





    ►Introduction



    This series of digital impact testing machine is mainly used for the determination of impact toughness of non-metallic materials such as rigid plastics, reinforced nylon, FRP, ceramics, cast stone, electrical insulating materials, etc. It is the ideal testing equipment for the chemical industry, research institutes, universities, quality inspection, etc.



    ►Standards



    The main technical parameters are in full compliance with the requirements of IS0 179-2000, GB/T 1043-2008, JB/T 8762-1998, GB/T 1451-2005, GB/T18743-2002





    ►Features



    1. This series of impact testing machine is an intelligent digital display impact testing machine developed by micro-computer technology. It can automatically correct the energy loss caused by friction and wind resistance, and get rid of the numerical chart of energy correction due to the influence of resistance. (The detection of the residual energy of the pendulum and the correction of the energy loss after the sample breaks are completed once in the impact process).

    2. This series of impact testing machines adopts electronic display test results to make the readings more intuitive and improve the accuracy and accuracy of the impact machine.

    3.Using rotary encoder garden grating angle measurement technology, with advantage of high precision, good stability and large measurement range, digital displaying the thrust energy, impact strength, pre-elevation angle, elevation angle, average value, and energy loss automatic correction.

        4. The swing arm is made of new carbon fiber material, the strength is higher than steel, and the weight is lighter than aluminum.

    .





    ►Patameter


    Model DH-1043-5D HT-1043-25D HT-1043-50D
    Pendulum energy 1J,2J,4J,5J 7.5J,15J,25J 25J,50J
    Test angle 150°
    Impact speed 2.9m/s 3.8 m/s 3.8 m/s
    Pendulum center distance 221mm 380mm 380mm
    Impact blade angle 30°
    Impact blade fillet radius R=2mm ±0.5mm
    Jaw support spacing 40mm,60mm,70mm,95mm
    Support blade corner radius R=1mm

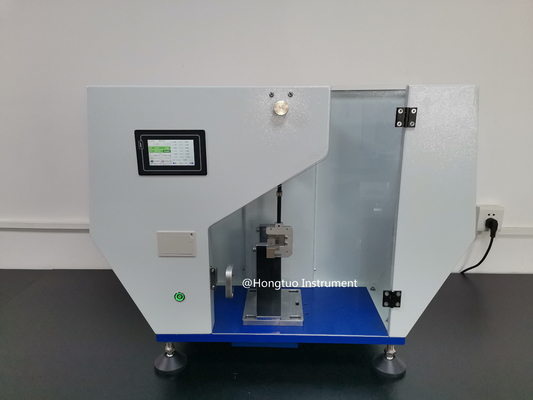

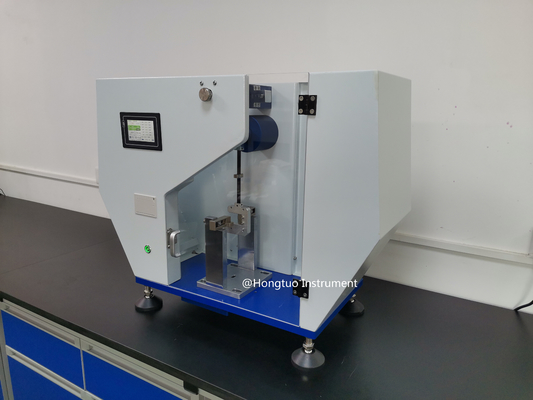

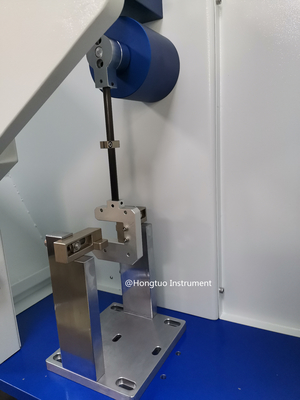

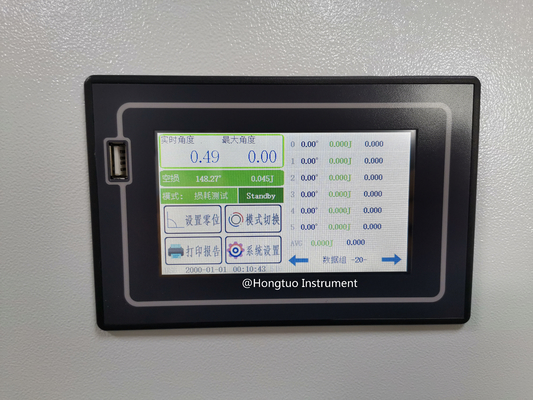

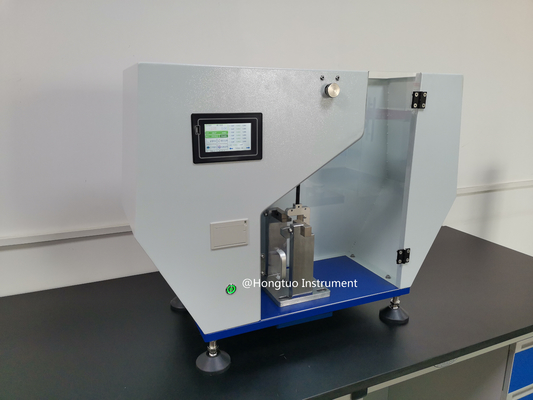

    ►Detail Images



    Charpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing EquipmentCharpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing EquipmentCharpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing EquipmentCharpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing Equipment







    ►Packing



    Charpy Impact Tester, Charpy Impact Testing Machine, Charpy Impact Testing Equipment
