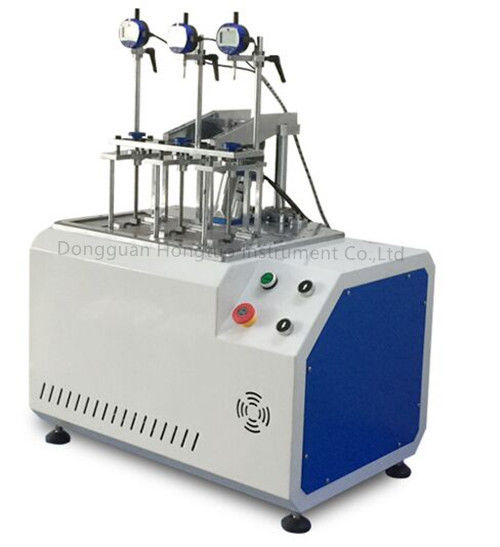

Vicat Softening Temperature Tester / Testing Equipment / Testing Instrument for Plastic
It is mainly used for the determination of heat distortion temperature and Vicat softening point temperature of non-metallic materials such as plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting laminates. It is easy to operate and precise in control. It is a highly intelligent test instrument widely used in colleges and universities, research institutes and product quality supervision and inspection units.
It adopts PC control, displacement sensor to measure deformation, real-time curve drawing, and the test data is processed twice directly on the PC. The test data can be imported into the OFFICE software for editing and layout.
►Standards
GB/T 1633,GB/T 1634,GB/T 8802,ISO 2507,ISO 75,ISO 306,ASTMD 1525,ASTMD 648
►Patameter
| 1) Temperature control range: room temperature to 300 ° C |
9) Cooling method: natural cooling above 150 °C, water cooling below 150 °C or natural cooling; |
| 2) Maximum temperature error: ±0.5°C |
10) Has an upper limit temperature protection function; |
| 3) Heating rate: 50 ° C / h, 120 ° C / h |
11) Number of test stands: 3 |
| 4) Temperature measurement point: 1 |
12) The control mode adopts the single-chip computer and PC distributed control system; |
| 5) Deformation measurement range: -0.1mm~1.1mm |
13) Instrument size: 880mm × 580mm × 1400mm |
| 6) Maximum deformation error: ±0.01mm |
14) Space required: 1m before and after, 0.6m left and right |
| 7) Using medium: methyl silicone oil (customer-supplied); |
15) Power supply: 4500VA 220VAC 50HZ |
| 8) Sample support span: 64mm, 100mm |
|

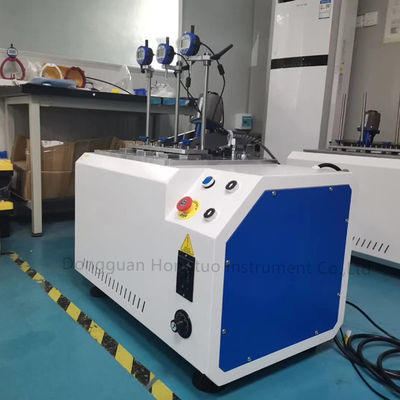

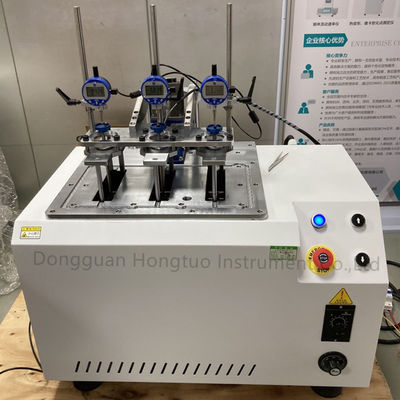

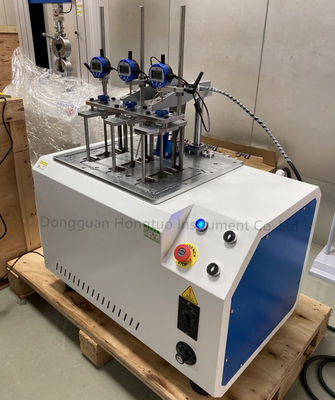

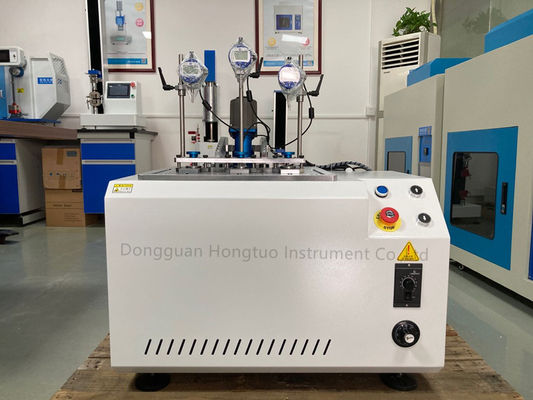

►Detail Images
