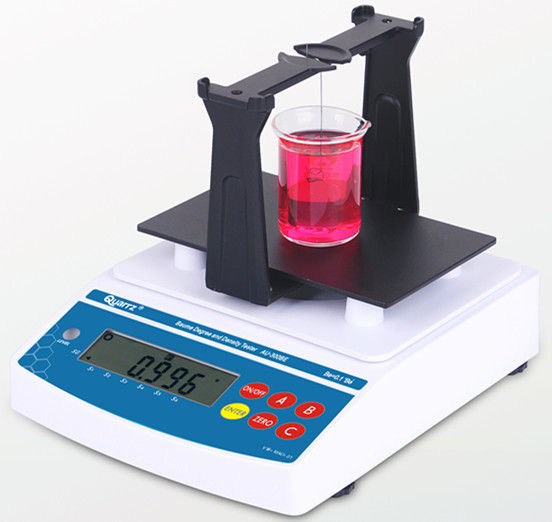

AU-300SA H2SO4 Sulfuric Acid Concentration and Density Tester, Concentration Measuring Instrument

AU-300SA H2SO4 Sulfuric Acid Concentration and Density Tester, Concentration Measuring Instrument

    • AU-300SA H2SO4 Sulfuric Acid Concentration and Density Tester, Concentration Measuring Instrument
    • AU-300SA H2SO4 Sulfuric Acid Concentration and Density Tester, Concentration Measuring Instrument
    • AU-300SA H2SO4 Sulfuric Acid Concentration and Density Tester, Concentration Measuring Instrument
  • AU-300SA H2SO4 Sulfuric Acid Concentration and Density Tester, Concentration Measuring Instrument

    Product Details:

    Place of Origin: Dongguan
    Brand Name: Quarrz
    Certification: CE,FCC
    Model Number: AU-300SA

    Payment & Shipping Terms:

    Minimum Order Quantity: One set
    Price: USD399 to 1299 per unit
    Packaging Details: Standard exporting package 45*20*36cm
    Delivery Time: In stock
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Power Supply: European Type;British Type;Australian Type;American Type Customized: Yes
    Density Resolution: 0.001g/cm3 Weight Resolution: 0.005g

    AU-300SA H2SO4 Sulfuric Acid Concentration and Density Tester,Concentration Measuring Instrument



    Directly reading sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG;

    Accurate measuring;Simple operation;High reliability.



    This device has been researched and developed by "Quarrz",It is based on Archimedes principle;Only need 5 seconds,the concentration value can be displayed;Also the baume Bé,specific gravity SG of sulfuric acid H2SO4% can be measured as well;In accordance with GB/T11198.111198.15,GB/T5526,13531,15223,5009;

    It has been widely applicated to chemical industry.



    Application:Fertilizer,pigment,steel pickling,black metal exaction,detergent,waste water treatment,steam,laboratory.



    Specification:

    AU-300SA concentration range:0.0-100.0%,concentration resolution:0.1%;baume

    resolution:0.1Bé;density resolution:0.001g/cm3

    AU-120SA concentration range:0.00-100.00%,concentration resolution:0.01%;baume

    resolution:0.01Bé;density resolution:0.0001g/cm3



    Features:

    (1)Direct reading:sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG.

    (2)No need to check data table;No need to input the conversion coefficient of density and

    concentration.

    (3)No limitation of concentration range;Upto 0.00-100.00%.

    (4)Concentration resolution can be upto:0.01%.

    (5)Function of calculating temperature compensation coefficient automatically at any

    interval temperature.No need manual computation.temperature range:0~99.9℃.

    (6)Manual inputting temperature coefficient is allowed.compensation range:

    (0.00001~9.99999)/ ℃

    (7)Can measure sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG at

    standard temperature 20℃.

    (8)The displaying sequence of H2SO4%,baume Bé,specific gravity SG can be set freely.

    (9)Function of air buoyancy compensation;and weights volume thermal expansion

    coefficient compensation.

    (10)Only need 50ml or less specimen.High precision,easy operation,stable and durable.

    (11)Equipped with AU-20B anti-corrosivity liquids measuring accessories.

    (12)Including RS-232C interface.Optional accessories AU-40A cable can connect

    PC.AU-40 printer can print data.

    (13)Equipped with special windproof dustproof cover.convenient combination.sturdy and stable.



    Measuring Procedure:

    (1)Place beaker filled with specimen on testing board.deduct weight of pothook.

    (2)Make standard weights hanged on the pothook and submerged into liquids to be tested totally.sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG will be

    displayed.



    Standard Accessories:

    host,measurement plate,AU-20B anti-corrosivity liquid measuring assembly.tweezer,

    thermometer,100g weights,windproof dustproof cover,measuring

    support,power transformer.



    AU-20B standard anti-corrosivity liquid measurement assembly:

    two pcs of anti-corrosivity pothpooks,two pcs of anti-corrosivity weights,two pcs of

    anti-corrosivity beakers.



    Optional Accessories:

    Optional Accessories:AU-40 printer,AU-20B anti-corrosivity liquid measuring

    assembly,AU-20A standard liquid measuring assembly.AU-40A cable.



    Anti-counterfeiting Announcement:

    The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.

    Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)

    Method two:After starting up,press ZERO button and B button at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.

    Method three:Check security code that generate automatically by machine number.





    Technical Specification:

    Brand Quarrz
    Model AU-300SA AU-120SA
    H2SO4% Concentration Resolution 0.1% 0.01%
    H2SO4% Concentration Range 0.0~100.0% 0.00~100.00%
    Baume Resolution 0.1°Bé 0.01°Bé
    Baume Range 0.1~100.0°Bé 0.01~100.00°Bé
    Density Resolution 0.001 g/cm3 0.0001 g/cm3
    Density Range 0.001—99.999g/cm3 0.0001—99.9999g/cm3
    Measuring Type 0.0~100.0% (0.00~100.00%)
    Measuring Time About 5 seconds
    Measuring Method Taking samples
    Temperature Compensation Standard 20℃
    Other target temperature
    Temperature Compensation Coefficient Automatically calculate compensation coefficient and input
    Manual input
    Temperature Compensation Coefficient Range (0.00001~9.99999)/ ℃
    Result displaying Standard 20℃:sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG(Displaying sequence can be set freely)
    Target temperature: sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG(Displaying sequence can be set freely)
    Actual temperature:sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG(Displaying sequence can be set freely)
    Measuirng Assembly Aluminum alloy measuring shelf,Aluminum alloy measuring plate
    Measuring Principle Archimedes principle
    Measuring Calibration/Verification Method Distilled water calibration/Distilled water verification
    Data Output Method RS-232C interfac,PC or AU-40 printer
    Standard Accessories

    host,measurement plate,AU-20B anti-corrosivity liquid measuring

    assembly.tweezer,thermometer,100g weights,windproof dustproof cover,measuring

    support,power transformer.

    AU-20B standard anti-corrosivity liquid measurement assembly:

    two pcs of anti-corrosivity pothpooks,two pcs of anti-corrosivity weights,two pcs of anti-corrosivity beakers.

    Optional Accessories AU-40 printer,AU-20B anti-corrosivity liquid measuring assembly,AU-20A standard liquid measuring assembly.AU-40A cable.
    Power Supply AC100V~240V 50HZ/60HZ(Default as European type,or choose other type)
    Gross Weight/Size 4.5kg/42.5 cm×17.5 cm×32.5cm
