CE,FCC Certification!Two Years' Warranty!New Design!

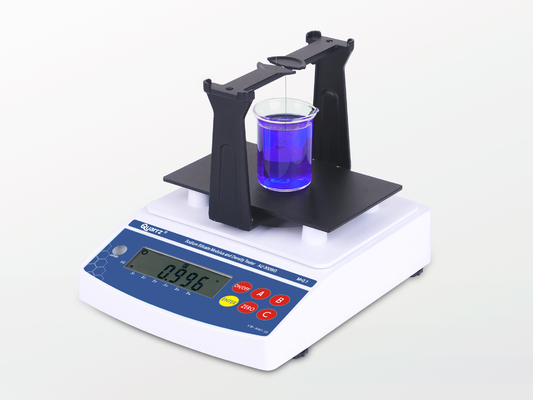

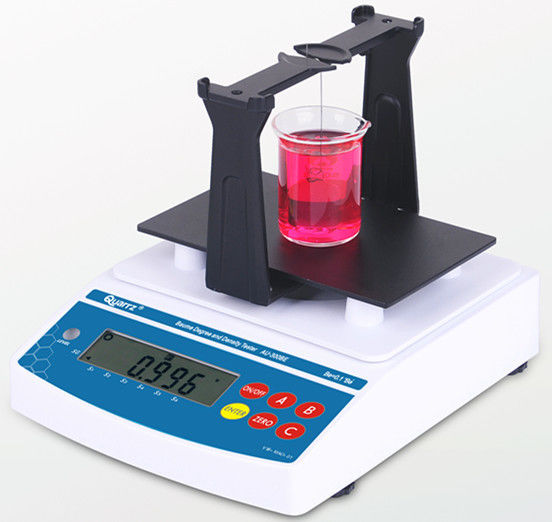

AU-300BE Digital Hydrometer, Baume Hydrometer, Baume Meter TOP Factory Supplier in China
The series products according to Archimedes principle.it is the new type baume specific gravity meter that has been researched and produced by Quarrz.Baume degree Bé,denisty value SG can be displayed
automatically;High precision,quick,simple;either density vaule is greater than one or less than one can be measured.
Application:industrial chemistry,chemical solution,fine chemical engineering,pharmacology,brew,beet process,eye medicine,food,starch industry,liquor,wine,and researcing laboratory.It is suitable for quality management,cost control,new formula modulation.,etc
Standards:GB/T 611,GB/T11540,GB/T12206,GB/T5518.
Measuring resolution:
AU-300BE Baume resolution:0.01°Bé,density resolution:0.001g/cm3,measuring range:0.01-100.00°Bé
AU-120BE Baume resolution:0.001°Bé,density resolution:0.0001g/cm3,measuring range:0.001-10.000°Bé
Features:
1. Any kinds of liquids can be measured.
2. Density and baume can be read directly.
3. High precision,simple operation,stability and durability.
4. Dynamic measuring,density value can be updated along with liquid formula.
5. Function of water temperature setting and air buoyancy density compensation setting.
6. Function of buzzer warning and overload warning.
7. Including RS-232C interface.it is convenient to connect PC with printer.AU-40 can be chose to print data.
8. Equiped with special windproof dustproof cover,convenient structure,sturdy and durable.
9. Volatile liquid,corrosive liquid,viscous liquid,strong acid and strong base liquid can be measured quickly(relative accessories is available)
Measuring Procedure:
(1)Place beaker filled with sample on testing board.and deducts weight of pothhook.
(2)Make standard weight hanged on the pothpook and submerged into liquid to be tested.Density value,baume will be displayed.
Standard Accessories:
host,measurement plate,AU-20A standard liquid measurement assembly.tweezer,thermometer,100g weight,windproof dustproof cover,measurement support,power transformer.
AU-20A standard liquid measurement assembly:
two pcs of stainless steel pothpooks,two pcs of normal glass weight,one pcs of standard stainless steel weight,two pcs of beakers.
Optional Accessories:
AU-40 printer,AU-20B anti corrosive liquid measurement assembly,AU-20A standard liquid measurement assembly.
Anti-counterfeiting Announcement:
The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.
-
Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)
-
Method two:After starting up,press ZERO button and B button at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.
-
Method three:Check security code that generate automatically by machine number.
Technical Specification:
|
Brand
|
Quarrz
|
|
Model
|
AU-300BE
|
AU-120BE
|
|
Baume resolution
|
0.01°Bé
|
0.001°Bé
|
|
Baume range
|
0.01~100.00°Bé
|
0.001~100.000°Bé
|
|
Density resolution
|
0.001 g/cm3
|
0.0001 g/cm3
|
|
Density range
|
0.001—99.999g/cm3
|
0.0001—99.9999g/cm3
|
|
Measuring type
|
Any kinds of liquid can be measured instantly.
|
|
Measuring model
|
3 group liquid measuring mold be provided at the same time.can work with different standard weight
|
|
Measuring time
|
Around 5 seconds
|
|
Measuring method
|
Dynamic measuring,density value can be updated along with liquid formula.
|
|
Result display
|
Density,Baume
|
|
Specific gravity measuring accessories
|
Aluminum alloy specific gravity shelf,aluminum alloy measuring board
|
|
Function setting
|
Water temperature setting,water density setting,standard measuring weights weight value and weight vaule in water setting
|
|
Measuring principle
|
Archimedes principle displacement method
|
|
Measuring result verify method
|
Distilled water verification
|
|
Output method
|
RS-232C standard communication interface,which is convenient to output and print data
|
|
Standard accessories
|
host,measurement plate,DE-20A standard liquid measuring assembly,tweezer,
thermometer,100G weight,windproof dustproof cover,measurement support,power transformer
AU-20A standard liquid measurement assembly:
two pcs of stainless steel pothpooks,two pcs of normal glass weight,one pcs of standard stainless steel weight,two pcs of beakers.
|
|
Optional accessories
|
AU-40 printer,AU-20B anti corrosive liquid measurement assembly,
AU-20A standard liquid measurement assembly
|
|
Power
|
AC110V~220V / 50HZ DC9V~12V 500mA
|
|
Packing size
|
Length42.5 cm X width 17.5 cm X height32.5cm
|
