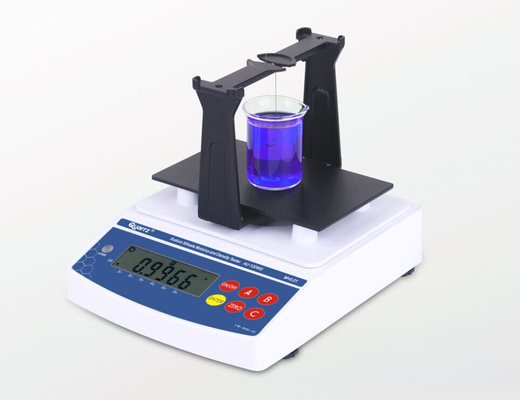

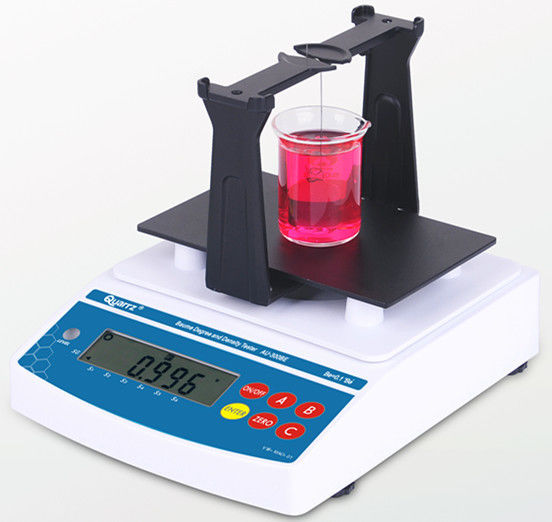

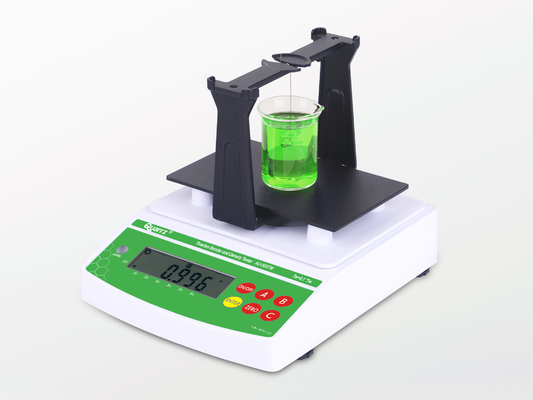

AU-120AW Ammonia Water Concentration Meter , Ammonium Hydroxide Density Meter
Directly reading ammonia water concentration,baume Bé,specific gravity SG;Accurate measuring;Simple operation;High reliability.
This device has been researched and developed by "Quarrz",It is based on Archimedes principle;Only need 5 seconds,the concentration value can be displayed;Also the baume Bé,specific gravity SG of ammonia water can be measured as well;In accordance with GB/T11198.1-11198.15,GB/T5526,13531,15223,5009;It has
been widely applicated to chemical industry.
Application:Ammonia water manufacturer,power plant,cement plant,pharmacy industry,textile
industry,printing and dyeing industry,silk,industry using ammonia water,agriculture using ammonia water,medical ammonia water,chemical industry.
Specification:
AU-300AW concentration range:0.0-33.0%,concentration resolution:0.1%;baume
resolution:0.1Bé;density resolution:0.001g/cm3
AU-120AW concentration range:0.00-33.00%,concentration resolution:0.01%;baume
resolution:0.01Bé;density resolution:0.0001g/cm3
Features:
(1)Direct reading:ammonia water concentration,baume Bé,specific gravity SG.
(2)No need to check data table;No need to input the conversion coefficient of density and concentration.
(3)No limitation of concentration range;Upto 0.00-100.00%.
(4)Concentration resolution can be upto:0.01%.
(5)Function of calculating temperature compensation coefficient automatically at any interval temperature.No need manual computation.temperature range:0~99.9℃.
(6)Manual inputting temperature coefficient is allowed.compensation range:(0.00001~9.99999)/ ℃
(7)Can measure ammonia water concentration,baume Bé,specific gravity SG at standard temperature 20℃.
(8)The displaying sequence of ammonia water,baume Bé,specific gravity SG can be set freely.
(9)Function of air buoyancy compensation;and weights volume thermal expansion coefficient compensation.
(10)Only need 50ml or less specimen.High precision,easy operation,stable and durable.
(11)Equipped with AU-20B anti-corrosivity liquids measuring accessories.
(12)Including RS-232C interface.Optional accessories AU-40A cable can connect PC.AU-40 printer can print data.
(13)Equipped with special windproof dustproof cover.convenient combination.sturdy and stable.
Measuring Procedure:
(1)Place beaker filled with specimen on testing board.deduct weight of pothook.
(2)Make standard weights hanged on the pothook and submerged into liquids to be tested totally.sulfuric acid concentration H2SO4%,baume Bé,specific gravity SG will be displayed.
Standard Accessories:
host,measurement plate,AU-20B anti-corrosivity liquid measuring assembly.tweezer,thermometer,100g weights,windproof dustproof cover,measuring support,power transformer.
AU-20B standard anti-corrosivity liquid measurement assembly:
two pcs of anti-corrosivity pothpooks,two pcs of anti-corrosivity weights,two pcs of anti-corrosivity beakers.
Optional Accessories:
Optional Accessories:AU-40 printer,AU-20B anti-corrosivity liquid measuring assembly,AU-20A standard liquid measuring assembly.AU-40A cable.
Anti-counterfeiting Announcement:
The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.
Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)
Method two:After starting up,press ZERO button and B button at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.
Method three:Check security code that generate automatically by machine number.
Technical Specification:
| Brand |
Quarrz |
| Model |
AU-300AW |
AU-120AW |
|
Ammonia Water
Concentration Resolution
|
0.1% |
0.01% |
| Concentration Range |
0.0~33.0% |
0.00~33.00% |
| Baume Resolution |
0.1°Bé |
0.01°Bé |
| Baume Range |
0.1~100.0°Bé |
0.01~100.00°Bé |
| Density Resolution |
0.001 g/cm3 |
0.0001 g/cm3 |
| Density Range |
0.001—99.999g/cm3 |
0.0001—99.9999g/cm3 |
| Measuring Type |
0.0~100.0% (0.00~100.00%) |
| Measuring Time |
About 5 seconds |
| Measuring Method |
Taking samples |
| Temperature Compensation |
Standard 20℃ |
| Other target temperature |
| Temperature Compensation Coefficient |
Automatically calculate compensation coefficient and input |
| Manual input |
| Temperature Compensation Coefficient Range |
(0.00001~9.99999)/ ℃ |
| Result displaying |
Standard 20℃:Ammonia water concentration,baume Bé,specific gravity SG(Displaying sequence can be set freely) |
|
Target temperature:Ammonia water concentration,baume Bé,specific gravity
SG(Displayingsequence can be set freely)
|
| Actual temperature:Ammonia water concentration,baume Bé,specific gravity SG(Displaying sequence can be set freely) |
| Measuirng Assembly |
Aluminum alloy measuring shelf,Aluminum alloy measuring plate |
| Measuring Principle |
Archimedes principle |
| Measuring Calibration/Verification Method |
Distilled water calibration/Distilled water verification |
| Data Output Method |
RS-232C interfac,PC or AU-40 printer |
| Standard Accessories |
host,measurement plate,AU-20B anti-corrosivity liquid measuring
assembly.tweezer,thermometer,100g weights,windproof dustproof cover,measuring
support,power transformer.
AU-20B standard anti-corrosivity liquid measurement assembly:
two pcs of anti-corrosivity pothpooks,two pcs of anti-corrosivity weights,two pcs of anti-corrosivity beakers.
|
| Optional Accessories |
AU-40 printer,AU-20B anti-corrosivity liquid measuring assembly,AU-20A standard liquid measuring assembly.AU-40A cable. |
| Power Supply |
AC100V~240V 50HZ/60HZ(Default as European type,or choose other type) |
| Gross Weight/Size |
4.5kg/42.5 cm×17.5 cm×32.5cm |
