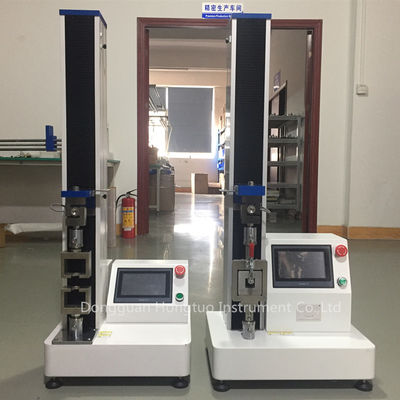

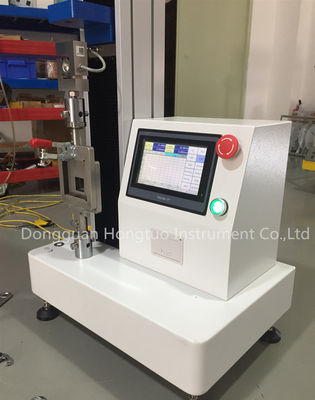

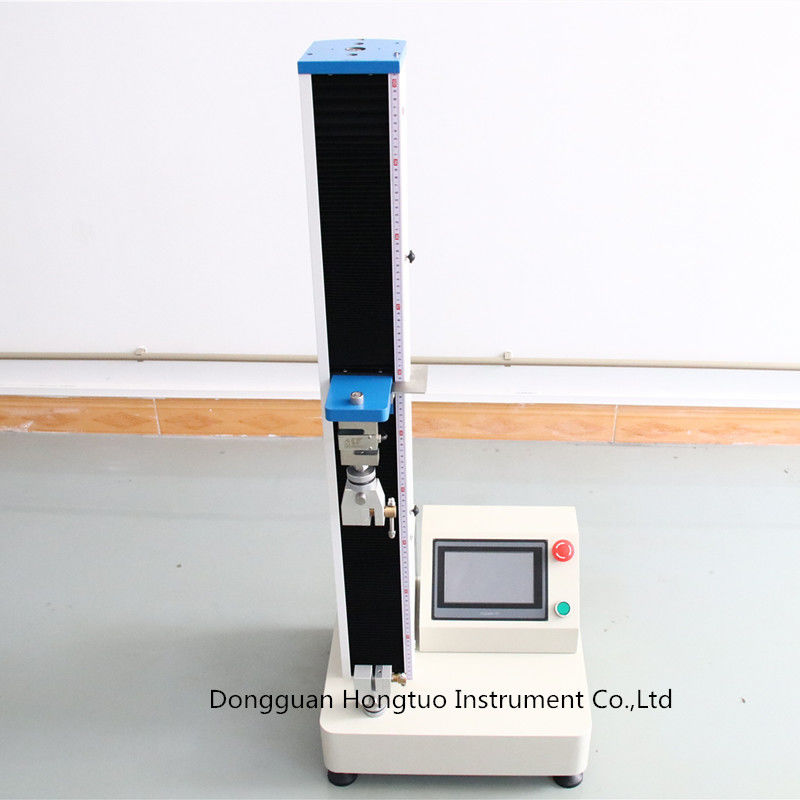

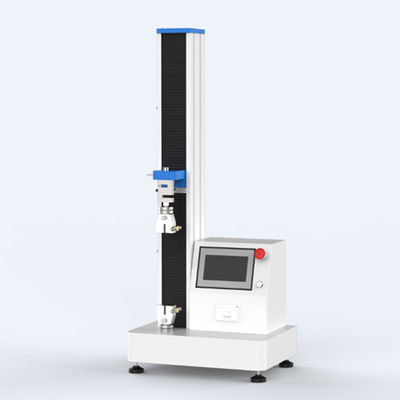

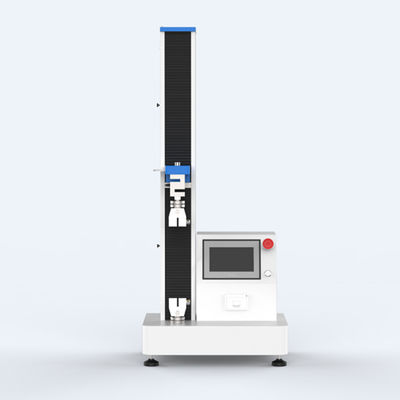

Tensile and Elongation Testing Machine, Tensile Testing Machines for Yarn, Yarn Tensile Strength Testing Machine
1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
| Brand |
HongTuo |
| Model |
WDW-S |
| -005 |
-01 |
-02 |
-05 |
-1 |
-2 |
-5 |
-10 |
| Capacity |
KN |
0.05kN |
0.1 kN |
0.2 kN |
0.5kN |
1 kN |
2kN |
5kN |
10KN |
| KG |
5kg |
10kg |
20kg |
50kg |
100kg |
200kg |
500kg |
1000kg |
| lb |
|
|
|
|
|
|
|
|
| Structure |
Double rail structure |
Three double rail structure |
| Unit switching |
G,Kg,lb,N,KN |
| Displacement unit switching |
Inch cm mm |
| Test machine level |
1class |
| Effective force range |
0.4％～100％FS |
| Force accuracy |
Within ±0.5% |
| Force decomposition |
1/200 000 |
| Force Power magnification |
X1,X2,X5,X10,X20,X50,X100.,etc.Seven-speed automatic shifting |
| Displacement resolution |
0.05mm |
| Displacement accuracy |
Within ±1% |
| Deformation measurement range |
2%～100%FS |
| Deformation indication accuracy |
Within ±1% |
| Large deformation measurement range |
(0～800)mm |
| Large deformation resolution |
0.05mm |
| Large deformation indication error limit |
Within ±1% |
| Maximum test speed |
500mm/min；optional maximum 1000mm/min |
| Minimum test speed |
0.1mm/min |
| Speed accuracy |
Within ±1% |
|
Beam travel
Measuring height
|
standard |
No grip testing stroke:920mm |
| optional |
No grip testing stroke:1320mm |
| Fixture configuration |
One set of tensile grip；can choose other grips |
| Returning method |
Manual or automatic selection, automatically return after the test ends or manually return to the initial position |
| Stop method |
1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop |
| Safety devices |
1.Mechanical limit switch protection 2.Emergency stop switch emergency brake |
| Overload protection |
Over 10% of maximum load, automatic machine protection |
| Accessories |
1 power cord; 1 manual; 1 certificate |
| Optional accessories |
Anti-splash device (protective door); printer;software |
| Powder supply |
220V.AC/ 50HZ; 110V.AC/60HZ |
| Main host size/ weight |
Standard model:Length*Width*Height:450mm*400mm*1160mm / Around 50KG
Heightening model:Length*Width*Height:450mm*400mm*1550mm / Around 55KG
|
| Packing size / weight |
Standard model:Length*Width*Height:550mm*500mm*1400mm / Around 73KG
Heightening model:Length*Width*Height:550mm*500mm*1800mm / Around 78KG
|
4.Main Unit Feature:
- Meet most of the mechanical properties test
- Completely compact structure, high rigidity design, durable
- Easy to operate, anyone can operate
- High accuracy, certified by a third-party testing agency
- High speed, low vibration, low noise motor drive
- Multilingual application function, adapt to different countries’ using
- Capabilities with graph, data sheet, report viewing and printing
- Automatic returning function after test completed
|
- Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, strength, etc.
- Has a variety of curve modes such as stress-strain, force-displacement, force-time, intensity-time
- Has test mode functions such as tensile, flexural, compressive, flexural, adhesive, tear, peel, elongation, etc.
- With mechanical travel switch; emergency stop switch; over current, over voltage, under current, under voltage, leakage overload protection; software overload limit protection; breakpoint shutdown protection and other multiple protection devices
- Optional: small deformation metal extensometer, large deformation displacement tracker
|
5.Software Function:
5.1.Automatic calibration: system can automatically realize the accuracy of the calibration value.
5.2.After the sample broken, automatic stop.
5.3.Automatic display:During the whole testing process,the LCD real-time display the testing force,
peak value, displacement, testing speed and testing force-time curve, testing force-displacement
curve.
5.4.Automatic return: beam automatic return to initial position when testing finished.
5.5.Breakage judgment: sample after fracture,beam automatic stop moving.
5.6.Limiting protection: Program control and Mechanical limiting protection.
5.7.Overload protection:When more than 3~5% of the rated load device automatically stop working
5.8.Automatic calculation: automatic calculation area after input sample diameter (round); Width,
thickness (flat), sample gauge ect.
6.Configurations:
| NO. |
NAME |
QTY |
| 6.1 |
High strength main unit |
1 SET |
| 6.2 |
High precision arc synchronous deceleration system |
1 SUIT |
| 6.3 |
High precision ball screw |
2 PCS |
| 6.4 |
Motor and Control system |
1 SET |
| 6.5 |
High precision load sensor |
1 PC |
| 6.6 |
High accuracy photoelectric encoder |
1 PC |
| 6.7 |
Tensile fixture |
1 SUIT |
| 6.8 |
Compression fixture |
1 SUIT |
| 6.9 |
Bending fixture(Optional) |
1 SUIT |
| 6.10 |
LCD controller |
1 SET |
| 6.11 |
Printer (Optional) |
1 SET |
