Computer Servo Universal Testing Machine , Desktop Tensile Testing Machines Reliable Supplier

Computer Servo Universal Testing Machine, Desktop Tensile Testing Machines Reliable Supplier

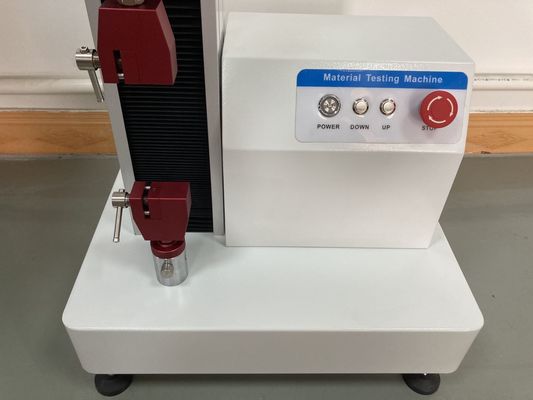

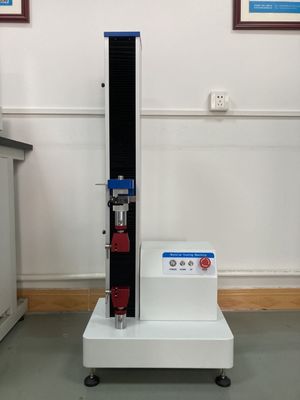

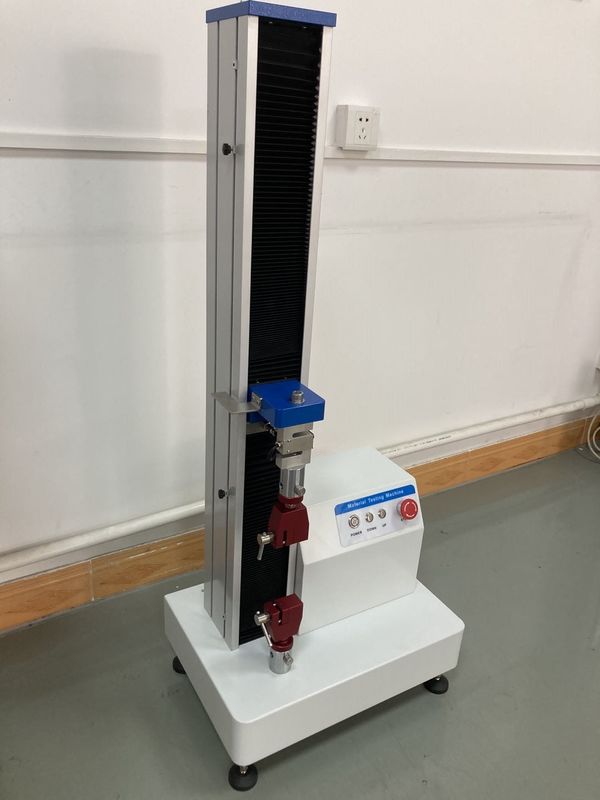

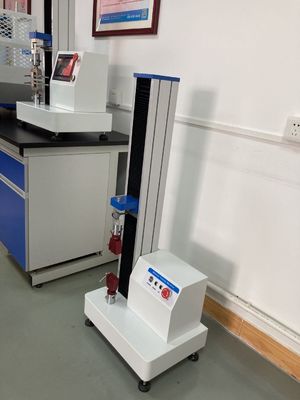

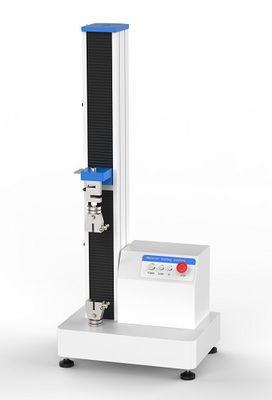

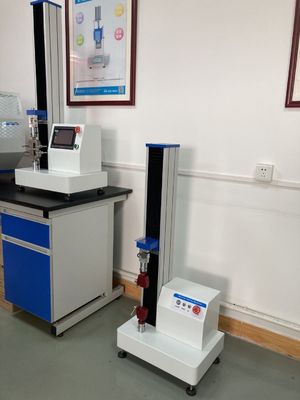

This machine is a new material testing machine combining electronic technology with software technology and mechanical transmission. It adopts imported AC servo electric and AC servo speed control system as precision power source. It adopts imported precision ball drive screw and guide rod, adopting imported grade 0.5. The precision force value sensor is then accurately measured by a high-precision force value measurement system. This series of models adopts single space structure, which is mainly used for material testing with load less than 10kN. It has firm structure, convenient operation and simple maintenance. It is an ideal test instrument for mechanical testing in various factories and enterprises. It has a wide and accurate loading speed and force range. It has high precision and sensitivity for measurement and control of load, deformation and displacement. It has stress, strain and displacement modes, and can find the maximum force value, tensile strength and bending strength, compression strength, modulus of elasticity, elongation at break, yield strength and other parameters, suitable for tensile, compression, peeling, tearing, shearing, etc. mechanical properties test and analysis.

1.Application:
Rubber and plastics; metrological quality inspection; commodity inspection and arbitration; technical supervision department; colleges and universities; scientific research laboratory; basic materials laboratory; metallurgical steel; machinery manufacturing; electronic appliances; automobile production; textile chemical fiber; wire and cable; packaging materials and food; Instrumentation; medical equipment; petrochemical; civil nuclear energy; aerospace; ceramic materials; magnetic materials industry; energy batteries; basic materials;

2.Standard:
ASTM, ISO, DIN, GB and other international standards.

3.Main Technical Parameters:


4.Main Unit Feature:
4.1.Adopt single column structure, lower for tensile, upper for compression, double space.
The beam is stepless lifting, light but rigid.
4.2.Adopting ball screw drive, realize no clearance transmission,make sure the precision control of
the test force and deformation speed.
4.3.The photoelectric encoder is the displacement sensor, with high resolution, strong
anti-interference ability.
4.4.The shiel plate with limit mechanism used to control the beam moving range, in order to avoid
sensor damaged due to the moving distance is too large.
4.5.The table, moving beams is made of high quality precision machining steel plate, not only
reduce the vibration generated by specimen fracture, but also improve the stiffness.
4.6.The motor tail is upwards, above the work surface, this design makes the main unit lower space
narrowing, the whole machine is more coordinating, and more easy to spread out the heat
generated by the motor rotation, extend electrical components life.
4.7.Three columns of mandatory orientation, make the main unit rigidity much improved, to further
ensure the repeatability of measurement.
4.8.Adopt bolt type grip installation, make the grip replace easier.

5.Software Function:
5.1.Defined function: according to different types of users, different material properties, different
test standards,different languages,flexible setting the test program to meet the test requirements.
5.2.Input Function: Entry specimen parameters before the test, you can single input sample
parameter, you can also batch input sample parameters, you can modify the sample parameters
before the test, the specimen parameters can be modified after the test, fully satisfy your
operating habits.
5.3.Data processing query functions: fully equipped data query function, print function, the export
function to ensure the accuracy of the test data, reliability, real embody and reflect the nature
and characteristics of the material test data.
5.4.Curve analysis function: All the material properties can be reflected by the data curve, so the
powerful data curve analysis function can help you better mastery and understanding of the
material test properties, which is your best helper to analyze the material.

6. Software Features:
6.1.Auto zero clearing: After starting test, the system auto zero clearing.
6.2.Auto calibration: system can automatically realize the value accuracy of the calibration.
6.3.Auto return: finish test, the cross beam will auto return to the starting position.
6.4.Auto gear shifting (when choose classify gear test): According to the load size automatically
switch to the appropriate range, to ensure the accuracy of the test data.
6.5.Auto speed changing: The cross beam moving speed can auto changing during the test process
according to the preset program, also can manual change.
6.6.Auto saving: adopting the the database management way, the test data and curve automatically
saved after the test.
6.7.Auto calculating: when finish test, automatic calculate elastic modulus, yield strength and the
non-proportional elongation stress, etc (Different test method, different analysis date.), can auto
analyze, also be artificial correction analysis results, improve the accuracy of the analysis.
6.8.Display way: Dynamic display of data and curves with the testing process.
6.9.Result comparison: Multiple test curve can use different color superposition, reappear, enlarge,
presenting comparison of a set of sample.
6.10.Curve choice:can choose Stress - strain, force - displacement, force - time, force-deformation,
displacement - time, and other curves to display and print; Can switch at any time to observe,
zoom in and zoom out, horizontal or vertical movement, real-time high speed sampling.
6.11.Test standard: Integrated with about 40 kinds of national standard or test method, can meet the
various test need of customers.
6.12.Test report: According to user required format, using EXCEL to compile reports and print bulk
data.
6.13.Limit protection: with mechanical and programmable two level limit protection function.
6.14.Overload protection: with two grade overload protection.Cross beam moving overload: when
the load exceeds 0.2-0.5% of the maximum value of the scale, automatic stop.
Test overload: when the load exceeds 2-5% maximum value of the each file, automatic stop.
6.15.Other protection: with overload, over current, over voltage, the displacement upper and lower
limit and emergency stop protection function.
