    Product Details:

    Place of Origin: Dongguan, Guangdong
    Brand Name: DahoMeter
    Certification: CE,ISO
    Model Number: WDW-100E

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD5999 to 6999 per unit
    Packaging Details: standard exporting wooden package
    Delivery Time: In stock
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Max. Load: 100KN Test Machine Level: 0.5 Class
    Effective Force Range: 0.4%~100%FS Motor: Panasonic AC Servo Motor.

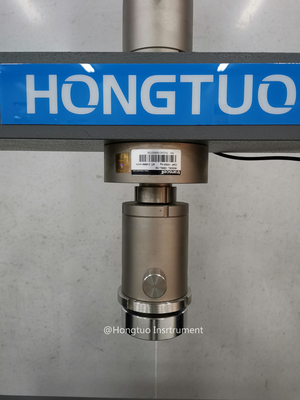

    Sensor: Transcell Sensor

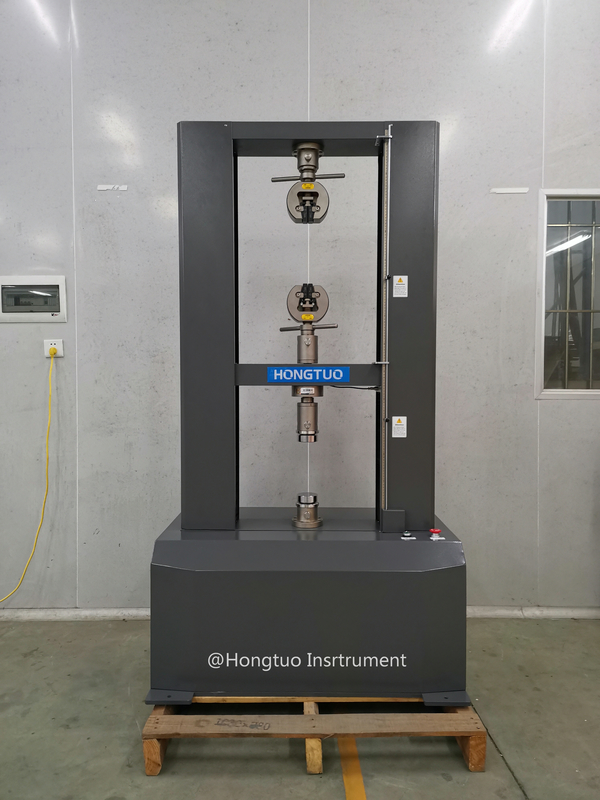

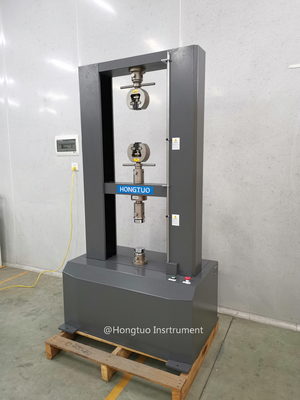

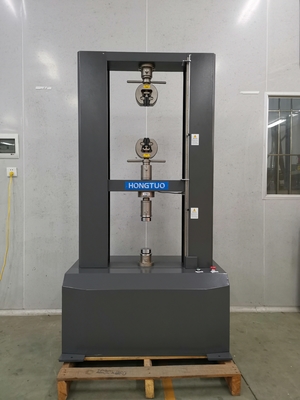

    Universal Measuring Instruments, Universal Testing Machine 100KN


    This series of computer-controlled testing machine is designed and manufactured by Hongtuo Instruments. It adopts the current international mainstream speed control technology, and the main parts are made of imported professional brand companies; this series has long-term high reliability and stability. With precision, smooth operation and long life. This series is mainly used for material testing with load below 100kN. The functional application covers the testing of most products. It is the perfect testing instrument for mechanical testing by factories, scientific research units and quality inspection organizations.


    It has a wider and more accurate loading speed and force range, and has higher accuracy and sensitivity for measurement and control of load, deformation and displacement. It has stress-strain, force-displacement, power-time, intensity-time and other modes. Can find the maximum force value, tensile strength, flexural strength, compressive strength, elastic modulus, elongation at break, yield strength and other parameters, suitable for testing and analysis of tensile, compression, peeling, tearing, shearing, etc. The testing machine adopts high-speed DSP platform, which has high integration, powerful control, data processing capability and high reliability, which is unmatched by other processor test machines; all-digital adaptive PID algorithm,the closed-loop(force,deformation,displacement) control system,can realize full digital closed-loop control of force and displacement, and can automatically switch between control loops, and realizes smooth transition without impact when switching between modes.


    Application industry:

    Metal materials; aerospace; powder metallurgy; magnetic materials, ceramics manufacturing; rubber and plastics; metrological quality inspection; commodity inspection and arbitration; technical supervision departments; universities; research laboratories; basic materials laboratory; metallurgical steel; machinery manufacturing; Automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; petrochemical; civil nuclear energy; energy battery; basic materials;


    Application Products:


    >Medium strength metal
    >Sintered products
    >Friction material
    >Rubber
    >Plastic
    >Film
    >Fiber and thin lines
    >Adhesive

    >Foam material
    >Tape
    >Elastomer
    >Connector
    >Biomaterials
    >Wood and paper products
    >Metal foil
    >Metallic line

    >Oil bearing
    >Ceramics
    >Parts
    >Fastener
    >Composite materials



    Standard:

    ASTM, ISO, DIN, GB and other international standards.


    Main Feature:


    • This machine is suitable for a wide range of applications
    • Powerful function, meet most of the mechanical properties test
    • Easy to operate, easy for anyone to operate
    • World-class AC servo motor and server for maintenance-free maintenance
    • Precision preloaded ball screw
    • Smooth operation, high reliability, sturdy and durable
    • Accurate measurement,certified by a third-party testing agency
    • High speed, low vibration, low noise servo motor drive
    • Multilingual application function, adapt to different countries’using
    • Test mode function such as tensile, flexural, compressive, flexural, adhesive, tear, peel, elongation, etc.
    • Has a variety of curve modes such as stress-strain,force-displacement, force-time, intensity-time
    • Automatic calculation of maximum force, minimum force, average force, maximum deformation, elongation, strength, etc.
    • Flexible capabilities of graph, datasheet, report viewing and printing.
    • Automatic homing function that automatically returns to the test start after the test is completed
    • With mechanical travel switch; emergency stop switch; over current, over voltage, under current, under voltage, leakage overload; software overload limit protection; breakpoint shutdown protection and other multiple protection devices
    • Optional: small deformation metal
    • extensometer



    Specification:

    BrandHongTuo
    ModelWDW-100E
    CapacityKN100
    kgf10000
    lb22046
    Unit switchingG,Kg,lb,N,KN
    Displacement unit switchingInch cm mm
    Test machine level0.5 class
    Effective force range0.4%~100%FS
    Force AccuracyWithin ±0.5% of the indicated value
    Force decomposition1/300 000
    Force Power magnificationFull automatic shift switching
    Displacement resolution0.001mm
    Displacement accuracyWithin ±0.5% of the indicated value
    Deformation measurement range0.2%~100%FS
    Deformation indication accuracyWithin ±0.5% of the indicated value
    Maximum test speed500mm/min
    Minimum test speed0.1mm/min
    Speed accuracyWithin ±0.5% of the indicated value

    Beam travel

    Measuring height

    standardNo grip testing stroke:900mm
    optional/
    /
    Effective widthstandard532mm
    optionalCustomized according to customer needs

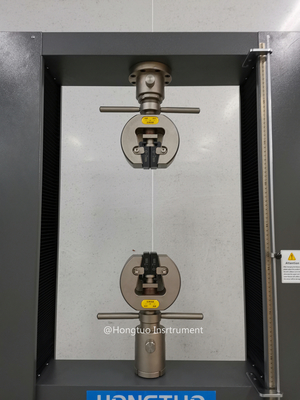

    Fixture configurationOne set of tensile grip;can choose other grips
    Returning methodManual or automatic selection, automatically return after the test ends or manually return to the initial position
    Stop method1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop
    Safety devices1.Mechanical limit switch protection 2.Emergency stop switch emergency brake
    Overload protectionOver maximum load, automatic machine protection
    Accessories1 power cord; 1 test software program CD; 1 data cable; 1 manual; 1 certificate
    Optional accessoriesAnti-splash device (protective door); computer; printer; small deformation metal extensometer,
    Power supply220V.AC/ 50HZ; 110V.AC/60HZ
    Main host size/ weightLength*Width*Height:1050mm*700mm*1955mm / around 480KG
    Packing size / weightLength*Width*Height:1130mm*780mm*2100mm / around 548KG


    Universal Measuring Instruments, Universal Testing Machine 100KNUniversal Measuring Instruments, Universal Testing Machine 100KNUniversal Measuring Instruments, Universal Testing Machine 100KN
