    Product Details:

    Place of Origin: China
    Brand Name: DahoMeter
    Certification: FCC, ISO
    Model Number: HT-6175-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: 5-7 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 100
    Contact Now
    Detailed Product Description
    Weight: About: 375kg Power: 9KW (motor 1.5KW)
    Rotation Ratio: 1:1.27 Roller Size: 120× L320mm

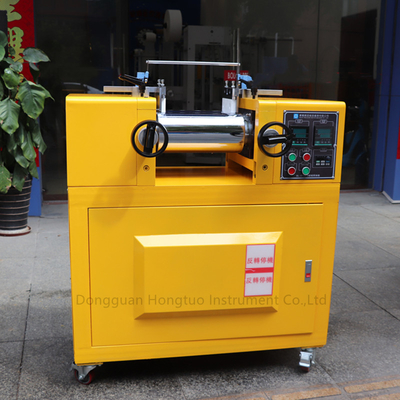

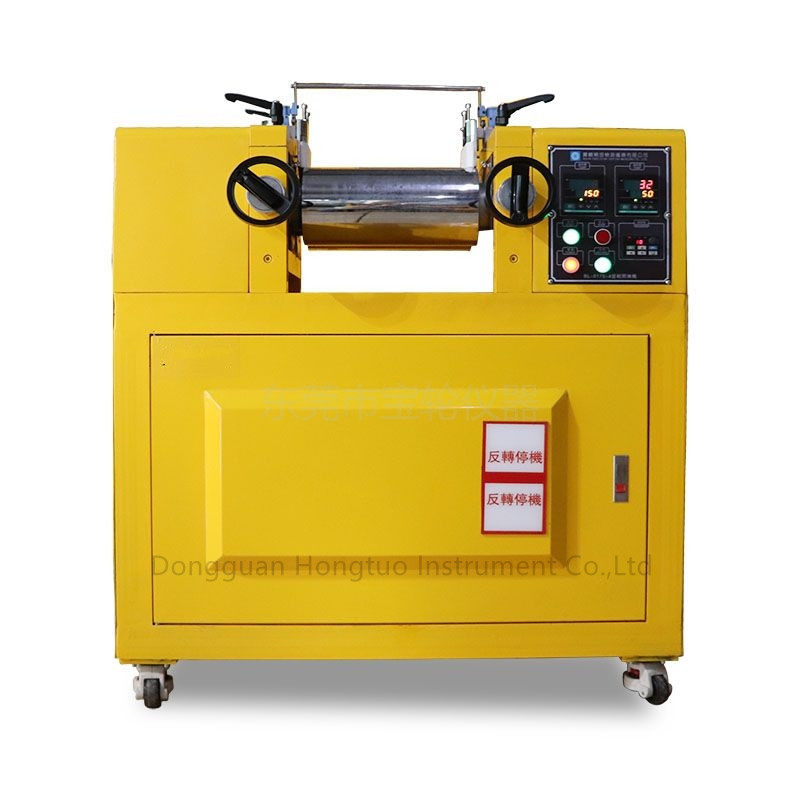

    Double Roll Mill HT-6175-A

    ----Electric heating/single speed governing/meter type



    It is suitable for plasticizing and dispersing for color master batch, PVC, plastic and pigment. The machine adopts special mold for electric heating.

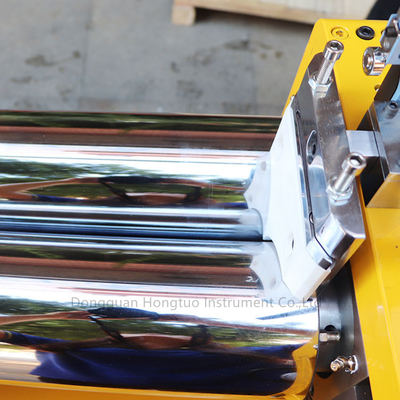

    Tool, double-roller mirror chrome plating, uniform temperature. The frequency converter installed in this machine can adjust the roller's speed at will.

    Speed to meet the dispersion of raw materials of different formulations.



    Specification:

    1. Temperature range: normal temperature~300℃

    2. Thermostat: LED digital display, key setting input, digital display output

    3. Heating method: imported electric heating tube (three-stage heating)

    4. Heating time: about 25min from room temperature to 200℃

    5. Temperature accuracy: ±2℃

    6. Roller size: Ø120× L320mm

    7. Roller spacing: 0~6mm adjustable

    8. Roller speed: 0~28r/min single frequency converter speed regulation (Taiwan Zhongchen)

    9. Roller surface: HRC58~62 mirror chrome plating

    10. Rotation ratio: 1:1.27

    11. Power: 9KW (motor 1.5KW)

    12. Safety protection: pull rod emergency stop, knee top reversal and other security devices

    13. Volume: 990×430×1150 (W×D×H)mm

    14. Power supply: 3∮, AC380V, 22A three-phase five-wire (customer-provided power connection port)

    15. Weight: about 375kg

    Accessories:

    1 scraper and 1 tray each;

    1 copy of the product manual and 1 quality card;

    1 oil gun.
