Differential scanning calorimeter DH-DSC-530LN

Differential scanning calorimeter DH-DSC-530LN

    • Differential scanning calorimeter DH-DSC-530LN
    • Differential scanning calorimeter DH-DSC-530LN
  • Differential scanning calorimeter DH-DSC-530LN

    Product Details:

    Place of Origin: GUANGDONG
    Brand Name: Mahoteter
    Certification: CE
    Model Number: DH-DSC-530LN

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: standard exporting package
    Delivery Time: 5 Days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300set
    Contact Now
    Detailed Product Description
    Temperature Resolution: 0.01℃ Temperature Fluctuation: ±0.1℃
    Heating Rate: 0.1~100℃/min DSC Range: 0~±600mW
    DSC Resolution: 0.01mW DSC Sensitivity:: 0.01mW

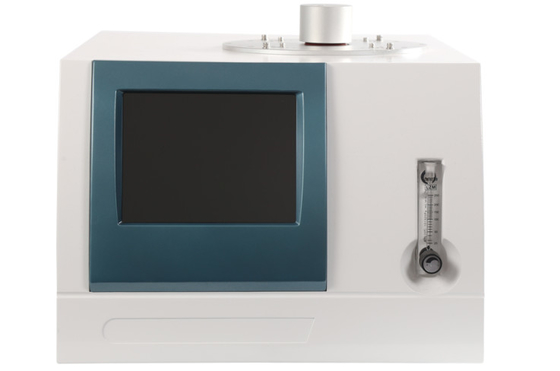

    Differential scanning calorimeter DH-DSC-530LN



    Introduction:

    Differential scanning calorimeter is a touch screen type, which can perform glass transition temperature test, phase transition test, melting and enthalpy value test, product stability, and oxidation induction period test.



    Standards:

    GB/T 19466.2-2004/ISO 11357-2:1999 Part 2: Determination of glass transition temperature

    GB/T 19466.3-2004/ISO 11357-3:1999 Part 3: Determination of melting and crystallization temperature and enthalpy

    GB/T 19466.6-2009/ISO 11357-3:1999 Part 6: Determination of Oxidation Induction Time and Oxidation Induction Temperature



    Technical parameters:

    1. Temperature range: -150~500℃(Determine the minimum temperature based on the refrigeration equipment)

    2. Temperature resolution: 0.01℃

    3. Temperature fluctuation: ±0.1℃

    4. Temperature repeatability: ±0.1℃

    5. Heating rate: 0.1~100℃/min

    6. Constant temperature time: recommended <24h

    7. Temperature control method: heating, constant temperature (automatic program control)

    8. DSC range: 0~±600mW

    9. DSC resolution: 0.01mW

    10.DSC sensitivity: 0.01mW

    11. Working power supply: AC220V/50Hz or customized

    12. Atmosphere control gas: nitrogen, oxygen (automatic switching of the instrument)

    13. Gas flow: 0-300mL/min

    14. Gas pressure: 0.2MPa

    15. Display mode: 8-inch LCD touch screen display

    16. Data interface: standard USB interface

    17. Parameter standard: Equipped with standard substances (indium, tin, zinc), users can calibrate the temperature by themselves



    Features:

    1. The industrial-grade 8-inch touch screen is completely free from the constraints of the computer.

    2. Brand new furnace structure, can be equipped with a variety of refrigeration devices.

    3. USB communication interface, strong versatility, reliable and uninterrupted communication, and supports self-restoring connection function.

    4. Automatically switch the two-way atmosphere flow, with fast switching speed and short stabilization time. At the same time, a protective gas input is added.

    5. The software is simple and easy to operate.

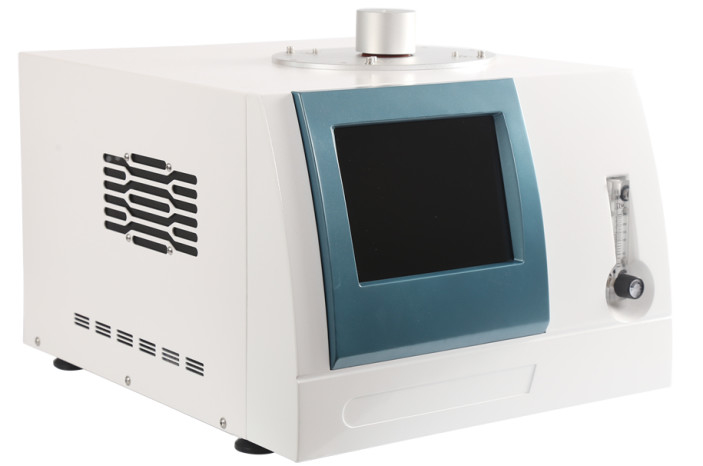

    Differential scanning calorimeter DH-DSC-530LN
