Liquid Density Meter High-precision Constant Temperature Density Tester for Oil Ink Paint DE-300L-T
This is the new series constant-temperature liquid density meter, constant temperature system and density measurement system is combined together. The combination of Archimedes' principle and precise electronic measurement technology and advanced electronic constant temperature technology enable fast and accurate measurement of density for liquids at a specific temperature. The instrument has a wide constant temperature range, temperature can be set arbitrarily from 10 °C ~ 50 °C.It has the notable features of the fast constant temperature speed, high precision, good durability; suitable for quality management, formula development, cost Control and other applications.
Application Industry:
Various oils, petroleum, cosmetics, paints, coatings, inks, flavors, spices, chemical solutions, chemical reagents, resins, adhesives, edible oils, beverages, pharmaceuticals, auxiliaries, synthetic agents, metal processing, thermal power, electroplating industries, Acid and alkali salt solutions, chemicals, construction, chemical trade, universities, testing agencies, government agencies, teaching institutions, and other industries.
Features and Advantages:
The density measurement system adopts sensors imported from Germany, which has high precision and good stability. The measuring frame adopts high-temperature resistant and high-strength materials,open structure design,to ensure the stability of the density measurement system and the convenience of taking samples; The convenience of cleaning measuring cups. The temperature control system uses a combination of a temperature control system imported from Japan and a PT100 temperature sensor. It has the features of constant temperature, high stability, constant temperature accuracy of 0.1°C;Constant temperature system and density measurement system is combined together.makes the instrument has more good testing speed,and more high accuracy testing result.
Operation Method:

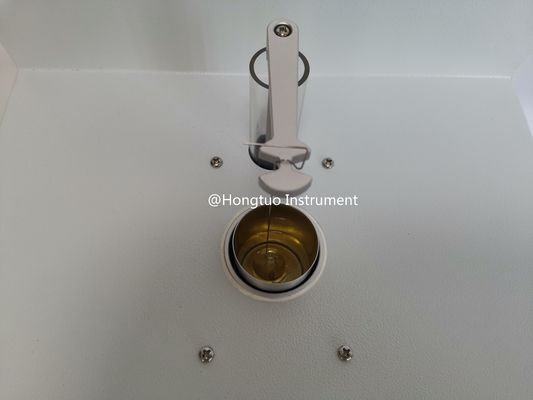

(1)In the displaying 0.000 status, place the measuring cup which contains the sample in the thermostatic bath.
(2)After being heated to the specified temperature, makes the standard weight which immersed in the sample hung in the center of the measuring frame with a hook. Press the ENTER key. The screen will be displaying the density at the current temperature. The symbol indicates the SG.
Specification:
| Brand |
DahoMeter |
| Model |
DH-300L-T |
DE-120L-T |
| Density resolution |
0.001 g/cm3 |
0.0001 g/cm3 |
| Density range |
0.001—99.999g/cm3 |
0.0001—99.9999g/cm3 |
| Temperature resolution |
0.1°C |
0.1°C |
| Temperature range |
10°C~50°C |
10°C~50°C |
| Can provide more wide temperature range per customers’demanding |
| Measuring principle |
Archimedes principle |
| Result displaying |
Density value |
| If need to measure the concentration, Baume degree, sugar content, alcohol content and other data, can choose other special model. |
| Function setting |
Temperature setting, solution density setting, standard weights weight setting and weight in water setting |
| Calibration method |
One-button automatic correction, automatic detection function |
| Testing result verification method |
Distilled water verification |
| Output method |
RS-232C |
| Standard accessories |
①main host,②100G weights,③powder cord,④2pcs of stainless steel hook,⑤1 pcs of stainless steel weights⑥1 pcs standard glass weights⑦2 pcs of measuring cup |
| Optional accessories |
①DE-40 printer ②DE-20B Corrosion-resistant liquid measuring assembly |
| Power supply |
AC~220V |
