Rubber Dumbbell Die Cutter Pneumatic Press Specimen Slicer Cutting Machine DH-PS-1T

Rubber Dumbbell Die Cutter Pneumatic Press Specimen Slicer Cutting Machine DH-PS-1T

    • Rubber Dumbbell Die Cutter Pneumatic Press Specimen Slicer Cutting Machine DH-PS-1T
    • Rubber Dumbbell Die Cutter Pneumatic Press Specimen Slicer Cutting Machine DH-PS-1T
    • Rubber Dumbbell Die Cutter Pneumatic Press Specimen Slicer Cutting Machine DH-PS-1T
  • Rubber Dumbbell Die Cutter Pneumatic Press Specimen Slicer Cutting Machine DH-PS-1T

    Product Details:

    Place of Origin: Dongguan,China
    Brand Name: DahoMeter
    Certification: CE, FCC
    Model Number: DH-PS-1T

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: 5-7 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Application: Rubber Dumbbell Specimen Cutting Machine Effective Height: 100mm.
    Machine Size: 280X330X430mm. Machine Weight: About 20 Kg

    Rubber Dumbbell Die Cutter Pneumatic Press Specimen Slicer Cutting Machine DH-PS-1T





    ►Introduction



    Pneumatic slicer, Rubber Dumbbell Specimen Cutting Machine cuts the test specimen with various specification by pneumatics,which is not only applicable to cut rubber,plastics or leather in laboratory,dumbbell-type test and other special material,but also used as small-scale pressure bed.





    ►Patameter


    Load 1000KG.
    Platen diameter Ф120 mm.
    Base plate 230X250mm.
    Effective height 100mm.
    Machine size 280X330X430mm.
    Machine weight about 20 kg.





    Operation



    1. Place the machine on a flat surface, adjust the four feet to make it stable.and put the cutting glue.

    2. Open the ventilation source, adjust the rear oil-water separator valve switch, adjust the barometer to at least 4KG.

    3. Put the PU glue, put the film on the glue, then put the knife mold, then hold the red button switch at the same time with both hands (for safety, both hands must be pressed at the same time), press the plate down on the knife mold, stay for a few seconds, so that the rubber is fully cut off, and at the same time let go, take out the test piece.

    4. When you are finished, please turn off the air supply.

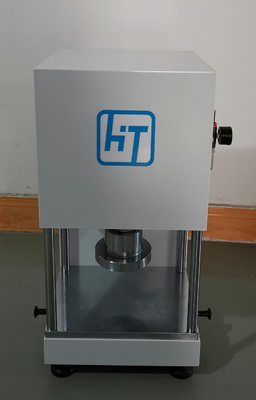

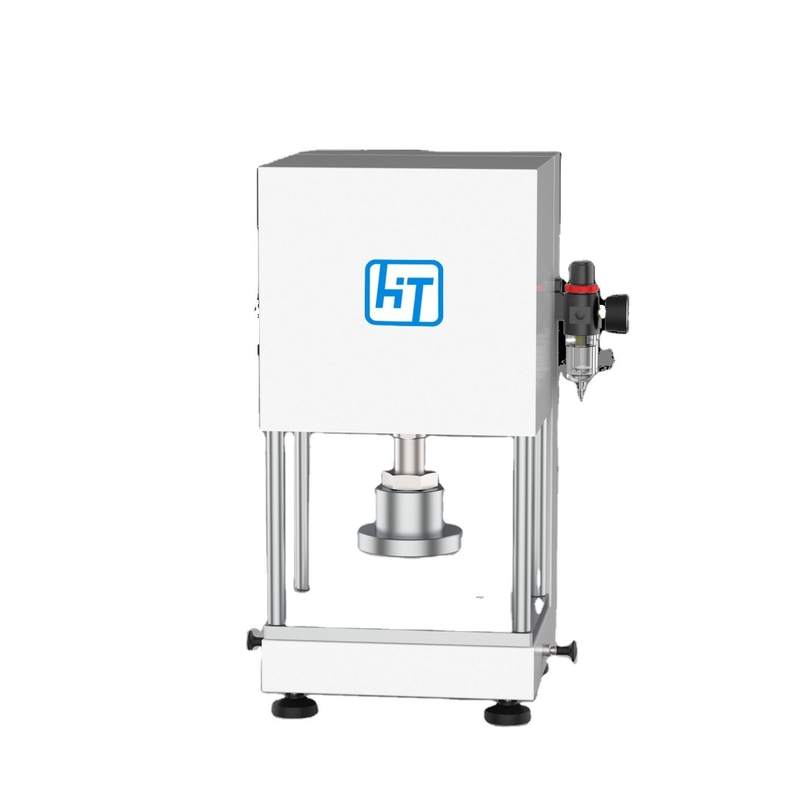

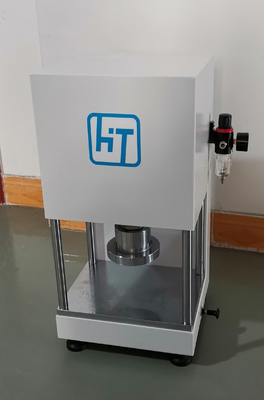

    ►Detail Images




    Rubber Dumbbell Die Cutter Pneumatic Press Specimen Slicer Cutting Machine DH-PS-1TRubber Dumbbell Die Cutter Pneumatic Press Specimen Slicer Cutting Machine DH-PS-1T
