LED Digital Display, Key Setting Input, Digital Display Output
Heating Time:
About 25min From Room Temperature To 200℃
Roller Spacing:
0～6mm Adjustable
Rotation Ratio:
1:1.27

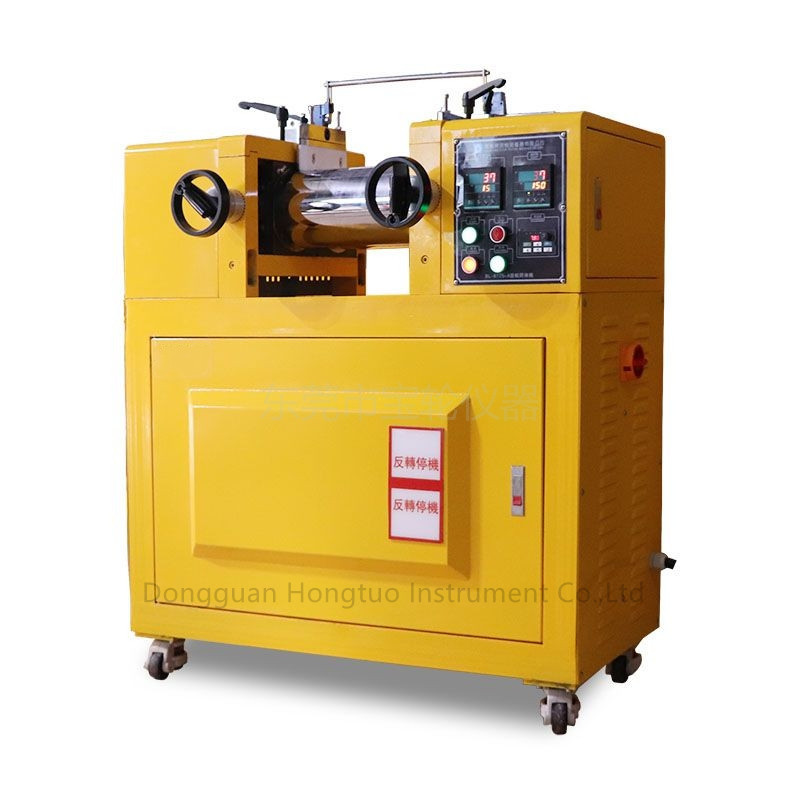

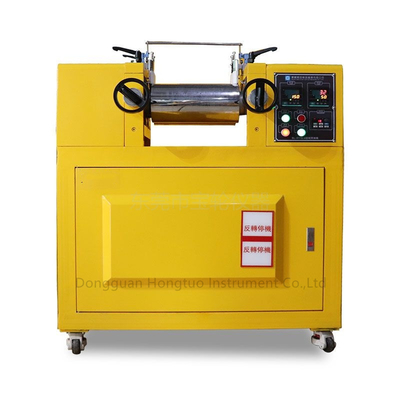

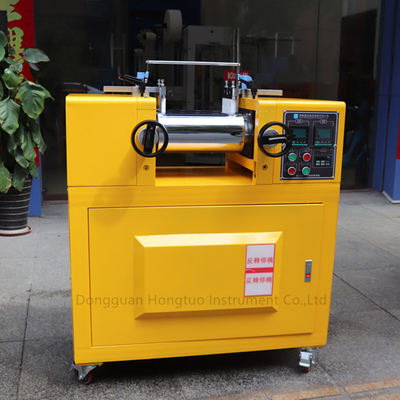

Double Rolling Mill Machine PVC Rubber and Plastic Lab Two Roll Mill for Sale
It is suitable for plasticizing and dispersing for color master batch, PVC, plastic and pigment. The machine adopts special mold for electric heating.

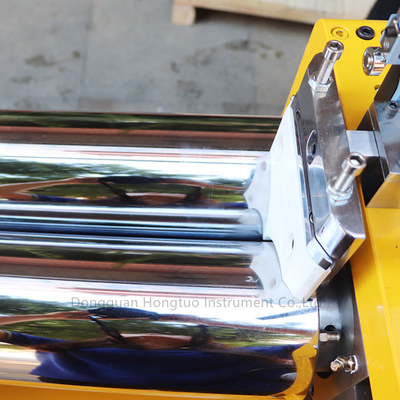

Tool, double-roller mirror chrome plating, uniform temperature. The frequency converter installed in this machine can adjust the roller's speed at will.
Speed to meet the dispersion of raw materials of different formulations.
Specification:
Temperature range
normal temperature～300℃
Thermostat
LED digital display, key setting input, digital display output
Heating method
imported electric heating tube (three-stage heating)
Heating time
about 25min from room temperature to 200℃
Temperature accuracy
±2℃
Roller size
Ø120× L320mm
Roller spacing
0～6mm adjustable
Roller speed
0~28r/min single frequency converter speed regulation (Taiwan Zhongchen)
Roller surface
HRC58~62 mirror chrome plating
Rotation ratio
1:1.27
Power
9KW (motor 1.5KW)
Safety protection
pull rod emergency stop, knee top reversal and other security devices
Volume
990×430×1150 (W×D×H)mm
Power supply
3∮, AC380V, 22A three-phase five-wire (customer-provided power connection port)
