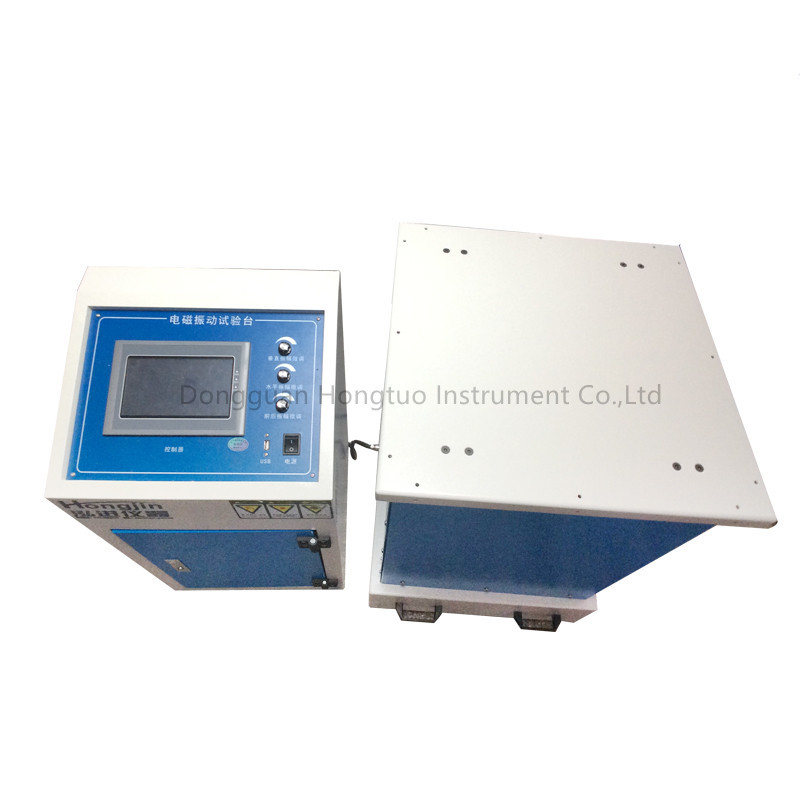

Electromagnetic Six-degree Vibration Table, Vertical Vibration Tester Test Table Price
1.Application:
Electromagnetic vibration table are widely used in industries such as defense, aviation, communications, electronics, automobiles, home appliances, and others. This type of equipment is used to find early faults, simulate actual working conditions and structural strength tests. The product has a wide range of applications, wide application areas, and significant and reliable test results. Sine wave, frequency modulation, frequency sweep, programmable, frequency doubling, logarithmic, time control.
2.Features:
1. Using the most advanced and simple operation technology, fixed frequency, frequency sweep, easy to switch the program at any time
2. With function of time timing, countdown displaying

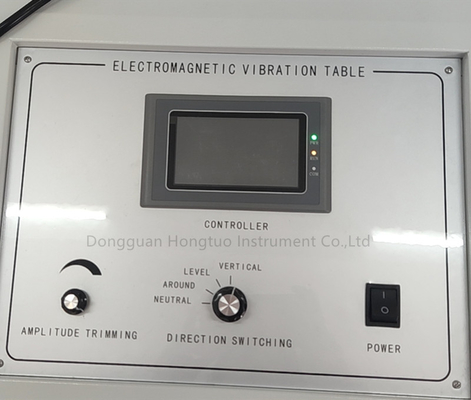

3. Touch controller, simple and convenient operation, solve the shortcomings of inconvenience of digital display operation
4. The control parameters are displayed synchronously in real time without manual intervention.
5. The base of the machine adopts vibration isolation device, which is easy to install and runs smoothly, without the need to install anchor fixing screws
6. Embedded amplitude prediction program and easy amplitude modulation
7. Four-point synchronous vibration, uniform table vibration
8. Stepless adjustment of amplitude, fixed frequency and frequency sweep operation functions adapt to various test requirements in different industries
9. Add anti-interference circuit to solve the interference of the control circuit due to strong electromagnetic field
10. Curve display function, you can view the frequency waveform changes at any time
11. Curve supports direct export function
12. Automatic switching of working direction
13. Vibration modes in different running directions can work simultaneously
3.Main Technical Parameters:
| Test load: |
60KG (can custom made for loads over 60kg)
|
| Vibration direction: |
Vertical + horizontal + front and back (automatic switching, can run different vibration directions at the same time) |
| Table size (mm): |
500×500 |
| Amplitude (P-P): |
0-5mm (random, change with frequency, adjustable) |
| Frequency sweep: |
1—600HZ can be set arbitrarily (true standard back and forth frequency sweep) 1-3000HZ can be customized |
| Maximum acceleration: |
20g |
| Indicator function: |
FM, frequency sweep, time, program |
| Accuracy |
Frequency can be displayed to 0.1Hz, precision 0.1Hz |
| Programmable function: |
5-600HZ, 1-8 segments can be arbitrarily set frequency and time |
| Multiplier work (0.1Hz) |
8-segment multiplier increase ①Low to high frequency ②High to low frequency ③Low to high and then low frequency/recyclable |
| Logarithmic work (0.1Hz): |
① Down to up frequency ② Up to down frequency ③ Down to up then down frequency-3 modes logarithmic/recyclable |
| Vibration waveform: |
Sine wave |
| Time control: |
Time can be set |
| Power: |
1.2KW |
