    Product Details:

    Place of Origin: Dongguan, Guangdong
    Brand Name: DahoMeter
    Certification: CE,FCC
    Model Number: C series

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD1399 to 7999 per unit
    Packaging Details: standard exporting wooden package
    Delivery Time: 5 to 7 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Test Load: 60KG Vibration Direction: Vertical + Horizontal + Front And Back (manual Switching)
    Frequency Sweep: 1—600HZ Can Be Set Arbitrarily (true Standard Back And Forth Frequency Sweep) Vibration Waveform: Sine Wave

    Horizontal Vertical Electromagnetic Vibration Table Shaker, Lab Vibrating Table for Sale







    1.Application:



    Electromagnetic vibration table are widely used in industries such as defense, aviation, communications, electronics, automobiles, home appliances, and others. This type of equipment is used to find early faults, simulate actual working conditions and structural strength tests. The product has a wide range of applications, wide application areas, and significant and reliable test results. Sine wave, frequency modulation, frequency sweep, programmable, frequency doubling, logarithmic, time control.





    2.Features:



    1. Using the most advanced and simple operation technology, fixed frequency, sweep frequency is convenient to switch at any time

    2. With time timing, countdown display function

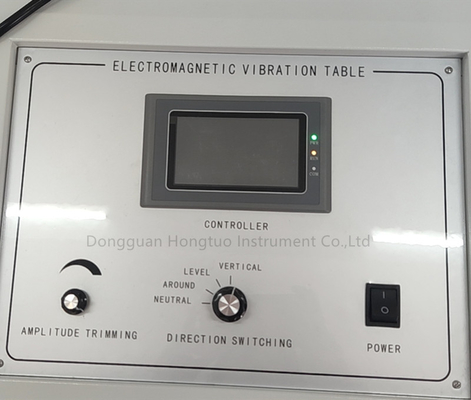

    3. Touch controller, simple and convenient operation, solve the shortcomings of inconvenience of digital display operation

    4. The control parameters are displayed synchronously in real time without manual intervention.

    5. The base of the machine adopts vibration isolation device, which is easy to install and runs smoothly, without the need to install anchor fixing screws

    6. Embedded amplitude prediction program and easy amplitude modulation

    7. Four-point synchronous vibration, uniform table vibration

    8. Stepless adjustment of amplitude, fixed frequency and frequency sweep operation functions adapt to various test requirements in different industries

    9. Add anti-interference circuit to solve the interference of the control circuit due to strong electromagnetic field

    10. Curve display function, can view the frequency waveform changes at any time





    3.Main Technical Parameters:



    Test load:

    60KG



    Vibration direction: Vertical + horizontal + front and back (manual switching)
    Table size (mm): 500×500
    Amplitude (P-P): 0-5mm (random, change with frequency, adjustable)
    Frequency sweep: 1—600HZ can be set arbitrarily (true standard back and forth frequency sweep)
    Maximum acceleration: 10g
    Indicator function: FM, frequency sweep, time
    Accuracy Frequency can be displayed to 0.1Hz, precision 0.1Hz
    Multiplier work (0.1Hz) 8-segment multiplier increase ①Low to high frequency ②High to low frequency ③Low to high and then low frequency/recyclable
    Logarithmic work (0.1Hz): ① Down to up frequency ② Up to down frequency ③ Down to up then down frequency-3 modes logarithmic/recyclable
    Vibration waveform: Sine wave
    Time control: Time can be set
    Power: 1.2KW





    Horizontal Vertical Electromagnetic Vibration Table Shaker, Lab Vibrating Table for SaleHorizontal Vertical Electromagnetic Vibration Table Shaker, Lab Vibrating Table for Sale
