Digital Electronic Torque Meter, Torque Tester, Torque Testing Machine for Bottle Cap with Reliable Quality

Digital Electronic Torque Meter, Torque Tester, Torque Testing Machine for Bottle Cap with Reliable Quality

    • Digital Electronic Torque Meter, Torque Tester, Torque Testing Machine for Bottle Cap with Reliable Quality
    • Digital Electronic Torque Meter, Torque Tester, Torque Testing Machine for Bottle Cap with Reliable Quality
    • Digital Electronic Torque Meter, Torque Tester, Torque Testing Machine for Bottle Cap with Reliable Quality
    • Digital Electronic Torque Meter, Torque Tester, Torque Testing Machine for Bottle Cap with Reliable Quality
  • Digital Electronic Torque Meter, Torque Tester, Torque Testing Machine for Bottle Cap with Reliable Quality

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: DahoMeter
    Certification: ISO,SGS
    Model Number: ANL-P1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: standard exporting package
    Delivery Time: 5-8 Work Days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Power Supply: Input:AC 220V 50HZ Output:DC 10V 300mA Warranty: 1 Year
    Testing Before Delivery: Yes

    Digital Electronic Torque Meter, Torque Tester, Torque Testing Machine for Bottle Cap with Reliable Quality



    Digital bottle lid torque meter is an intelligent multi-functional measuring instrument which is designed for testing various kinds of bottle lid torque. It main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. It’s widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.





    Specification:



    Type



    Index

    With printer ANL-P1 ANL-P2 ANL-P3 ANL-P5 ANL-P10 ANL-P20
    No printer

    ANL-W

    P1

    ANL-W

    P2

    ANL-W

    P3

    ANL-W

    P5

    ANL-WP

    10

    ANL-WP

    20

    Measu ring range

    / Divisi on

    value

    N·m

    1.0000/0

    .0001

    2.0000/0

    .0001

    3.0000/

    0.0001

    5.0000/

    0.001

    10.000/

    0.001

    20.000/

    0.001

    Kg·cm

    10.200/

    0.001

    20.400/

    0.001

    30.600/

    0.001

    51.000/

    0.01

    102.00/

    0.01

    204.00/

    0.01



    Lb·in

    8.850/

    0.001

    17.700/

    0.001

    26.550/

    0.001

    44.250/

    0.01

    88.50/

    0.01

    177.00/

    0.01

    Precision ±1%

    Peak Value Sampling

    Frequency

    2000HZ
    Power 7.2V 1.2VX6 Ni-MH Battery group
    Charging Time 4~6 Hours

    Continuous using

    time of battery

    About 10 Hours
    Battery life ≥300 times
    Size 400mm×200mm×200mm
    Net Weight 12KG
    Power adapter Input:AC 220V 50HZ Output:DC 10V 300mA





    Main Features:



    1)High precision, high resolution, quick sampling speed, full-screen display.

    2)Adopting high precision torque sensor, with torque direction display.

    3)Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.

    4)Three units can be switched each other (N·m,Kgf·cm,Lb·in).

    5)Real-time, peak, automatic peak three models of optional switch.

    6)Use USB interface and PC communications, synchronous test function can connect to the computer, computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.

    7)Peak holding, remove automatically function, remove time to set freely.

    8)Large storage, can save 99 groups of test data.

    9)Without automatic shutdown function, time can be set freely.

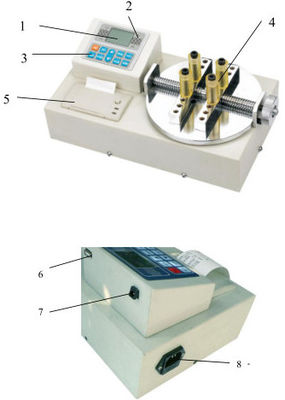

    Product Structure:



    Digital Electronic Torque Meter, Torque Tester, Torque Testing Machine for Bottle Cap with Reliable Quality





    1, LCD 2, Indicating lamp 3, Function keys 4, Special fixture
    5, Printer 6, USB interface 7, Charging socket 8, Power socket
