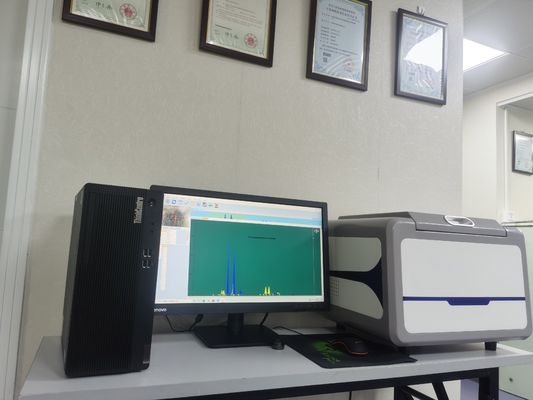

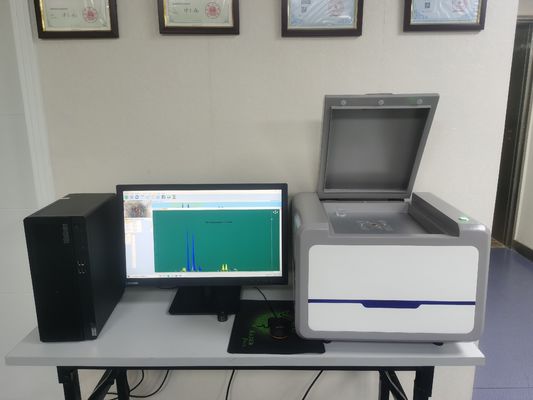

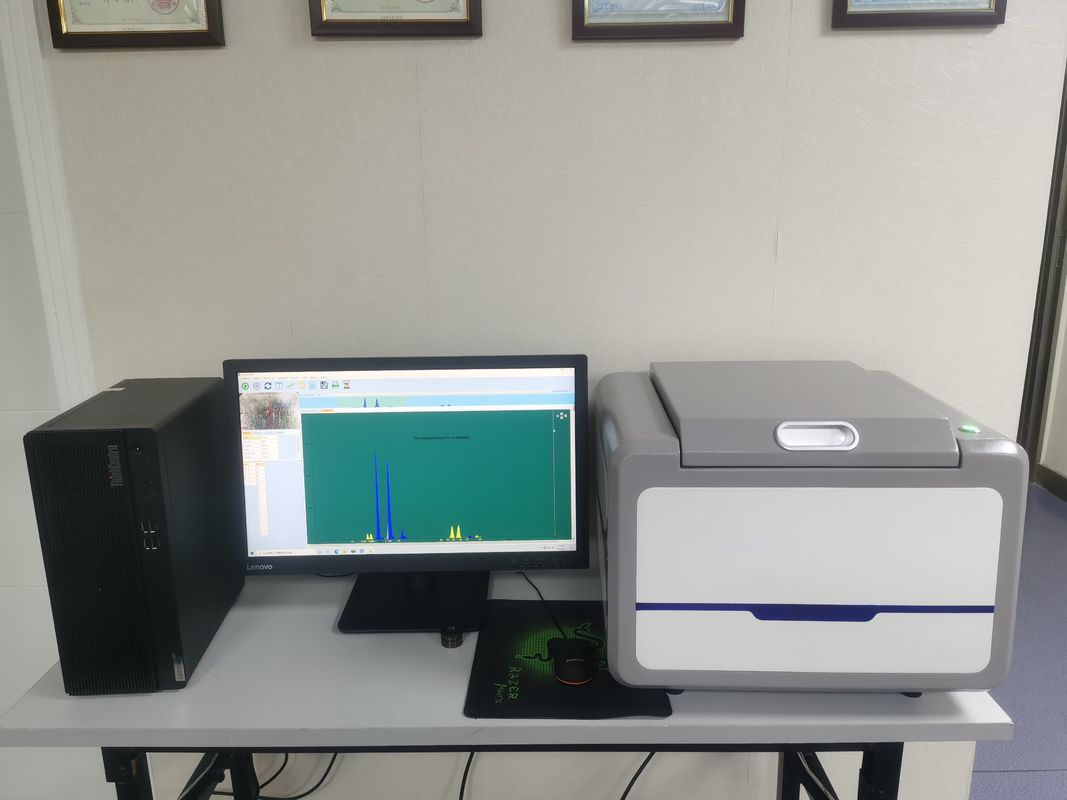

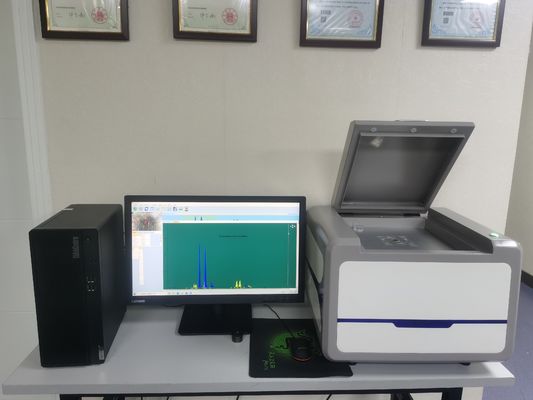

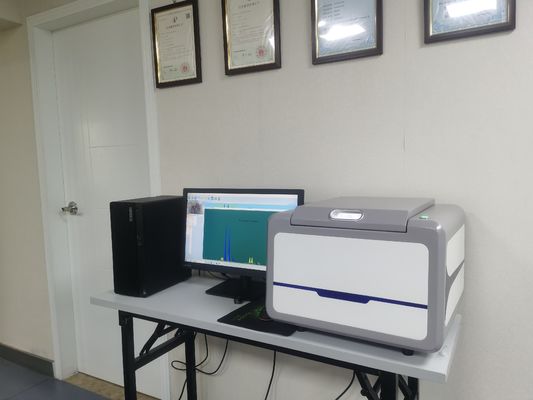

High Precision XRF Precious Metal Analyzer, Metal Analyzer Spectrometer Si Pin Type DX-2800
Application
pawnbroking,jewelry industry,banking industry,jewelry testing center,mining industry,precious metal recycling,precious metal materials researching laboratory.,etc.
Specification
- Analysis Range 1ppm to 99.99%
- Accuracy RSD ≤ 0.015% (Au ≥ 90%)
- Sample Form Solid, powder, liquid
- X-Ray Tube Voltage 5KV ~ 50KV (USA)
- High Voltage Power Supply 0 ~ 50KV Spellman (USA)
- X-Ray Tube Current 0μA ~ 1000μA
- Camera HD camera
- Filters Selectable customized switches
- Detector Type SDD (USA)
- Resolution 135 ± 5eV
- Multichannel Analyzer KEY-DMCP

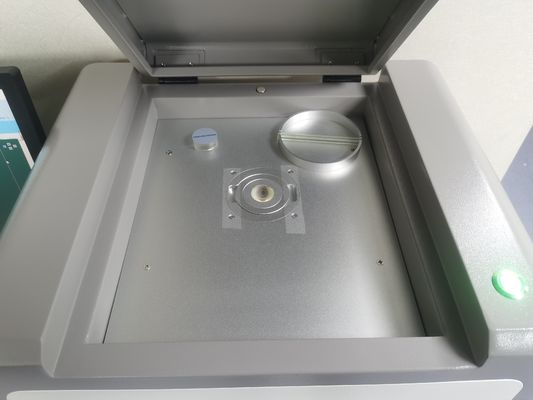

- Sample Chamber Size 310 * 280 * 60 (mm)
- Test Time 10sec ~ 100sec
- Elements of Interest Precious metal Au, Ir, Ag, Pt, Pd, Ru, Rh, Os, etc.
- Basic metal W, Cr, Mn, Fe, Co, Ni, Cu, Zn, Cd, Sn, Pb, etc. (Na ~ U)
- Analysis Software KEY-FP qualitative and quantitative analysis software
- External Dimensions 380 * 372 * 362 (mm)
- Weight 31Kg
Instruments Environmental Requirements
Ambient Temperature -5 ° C ~ 40 ° C (Suggested that in air conditioning room)
Relative Humidity 15% ~ 90%
Power Requirements AC 220V ± 5V, 50/ 60 Hz
No high power electromagnetic and vibration interference sources nearby
Advantage
* Designed to be compact, requiring minimal countertop space.
* Attractive design suitable for a showroom floor.
* Easy-to-use analyzer providing karat and compositional analysis results with one push of a button.
* Provides accurate chemistry and karat classification within seconds.
* Innovative feature to help identify gold-plated objects.
* Provides the ability to quickly and easily create result certificates
* Testing chamber window and interior lighting enable continuou sample viewing for vendors.utmost customer confidence.
* Network capability for easy access to testing results as they are being generated.
* Safe and secure closed-beam system that requires minimal training in most countries.
* Easy and accurate measurement automatically adjusts for the shape and size of the sample.
* Automatic karat classification.
* Large data storage capacity for test archiving.
* Easy data export and reporting for immediate certification.
* Integrated camera and small spot collimation for focused analysis and sample Image archiving.
* Completely nondestructive testing method.
