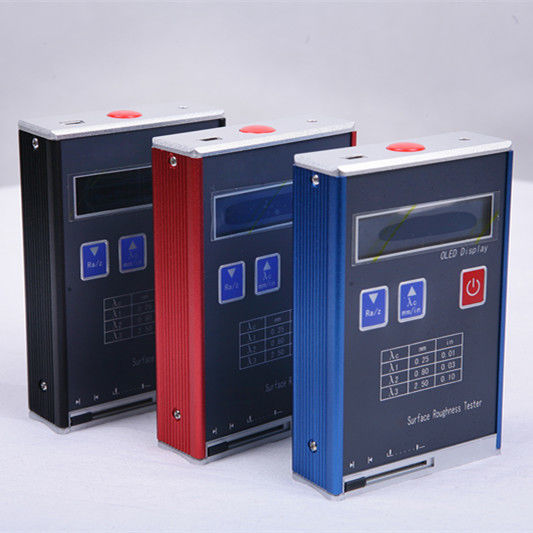

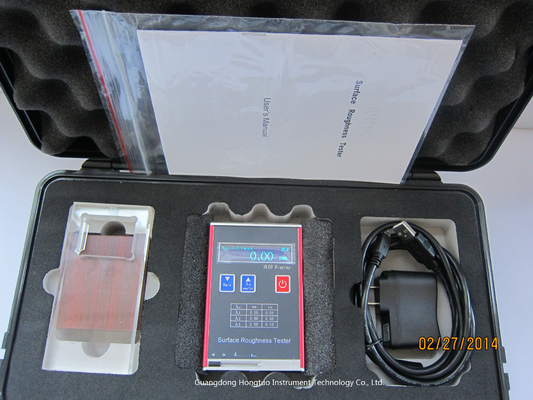

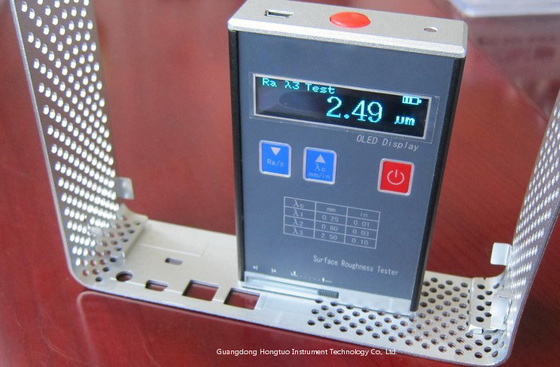

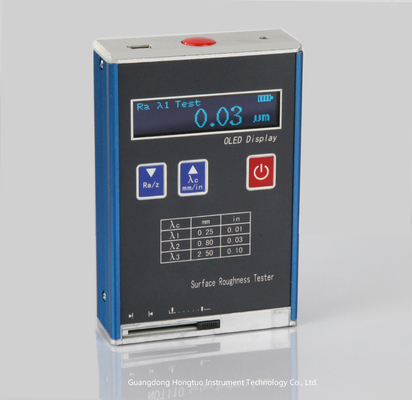

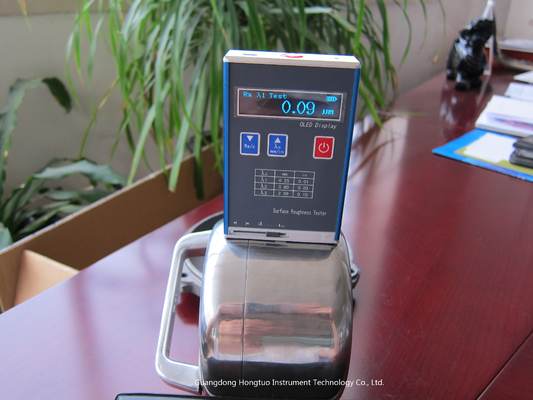

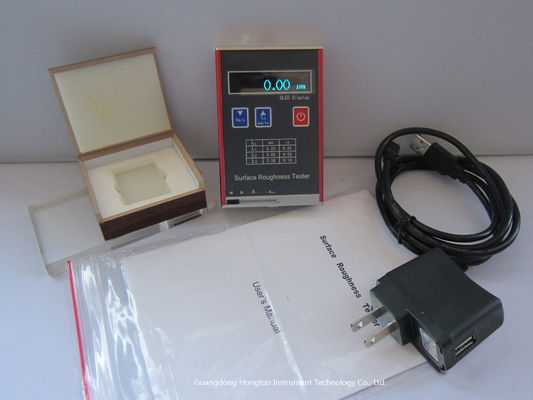

Digital Electronic Portable Surface Roughness Tester Price

Product Details:

Place of Origin:	Dongguan
Brand Name:	DahoMeter
Certification:	FCC,CE
Model Number:	KR-100

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	USD499 to USD1299
Packaging Details:	standard exporting package
Delivery Time:	5-7 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Usage:	Digital Surface Roughness Tester	Testing Before Delivery:	Yes
After-sale Customer Service:	Yes

Surface Roughness Meter, Surface Roughness Gauge, Portable Surface Roughness Test Equipment

Product Application

It is widely applicable in testing surfaces of all kinds of metals and non-metals.

Main Features

*Shell used to pull aluminum mold design, durable, anti-electromagnetic interference ability significantly, in line with the design of the new trend.

*Using high-speed DSP processor for data processing and calculation, measurement and computation speed is greatly improved.

*Liquid crystal display wide temperature using OLED color display, popular high brightness, no visual angle, is suitable for various occasions.

*The lithium ion rechargeable battery, can work for a long time, no memory effect, can while charging, charging time is short, long battery life.

* Using a dedicated charger or computer USB port for charging, convenient and quick.

*Real-time monitoring of lithium battery power and display, and to remind users to charge with charging progress indication.

*Automatic shutdown function and low power design of software and hardware of the instrument with long working hours, suitable for field use.

*The surface roughness of metal and non-metallic.

*Pocket-size & economically price

*Large measuring range suitable for most materials

*Optimized electric circuit design with transducer structure-design, high integrate power.

*It could test ex-circle, flat surface, conical surface and also test groove larger than 80*30mm.

Technical Parameter

Testing parameters	Ra, Rz
Measuring range (um)	Ra: 0.05-15.0
	Rz: 0.1-50.0
Sample length (mm)	0.25, 0.80, 2.50
Evaluation length(mm)	1.25, 4.0, 5.0
Stroke length (mm)	6
Indication accuracy	0.01
Indication error	±(7-10)%
Variability	<12%
Power	Rechargeable li-battery
Stylus static force:	≤ 0.016N
Force measuring	≤ 800N/m
rate of change
Working temperature	-20℃～40℃
Relative humidity	<90%
Weight of Host	200g
Size	106mmx70mmx24mm
