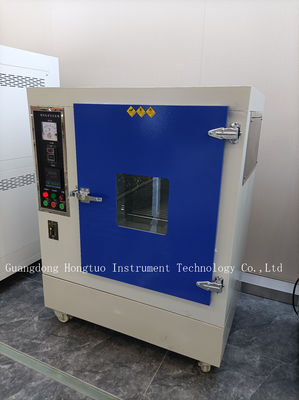

225L UV Aging Environmental Test Chamber, UV aging test machine, Ultraviolet Tester Weatherometer DH-RUV-3
Usage:
UV testing chamber is suitable for testing the aging degree for the materials or the products in the climate condition of sunlight,temperature,humidity,condensation and rain.,etc.Can get the result of color
changing,color fading,dulling,chalking,cracking,muddy,fragility,alveolation,strength retrogression and oxidation .,etc.
Standards:
ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799, ASTM D 4587, SAE, J2020, ISO 4892 All current UV aging test standards.
Features:
(1).The installation thickness is adjustable;Easy installation.
(2).Upward spinning door is not in the way of users to operate machine;The machine is only took very small space.
(3).By using special cooling system,the ordinary tap water is allowed to be used.
(4).Very convenient software program;Will automatically alarm if operate wrongly or machine breakdown;light intensity can be programmed.
(5).The lifetime of tube can be extended if has radiation calibrator.(more than 1600 hours)
(6).Can be divided into ordinary type,light irradiation controlling type,spraying type.
Specification:
1. Inner chamber size: 600*500*750mm (W×D×H)
2. Outer chamber size: 980*650*1080mm (W×D×H)
3. Inner chamber material: high-quality galvanized sheet.
4. Outer chamber material: heat-resistant and cold-resistant board paint
5. Irradiation tube: UVA-340
6. Number of UV lamps: 6 tiles on top
7. Temperature range: RT+10℃~70℃ adjustable
8. Temperature uniformity: ±2℃
9. Temperature fluctuation: ±2℃
10. Controller: Digital display intelligent controller
11. Temperature control method: PID self-tuning SSR control
12. Test time: 0~999H (adjustable)
13. Standard sample rack: a layer tray
14. Power: 220V 3KW
