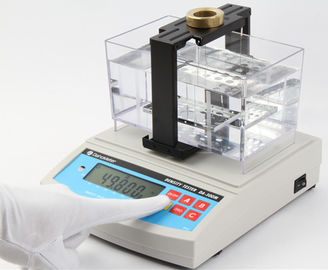

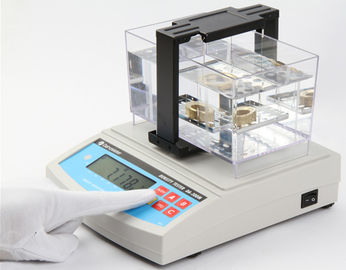

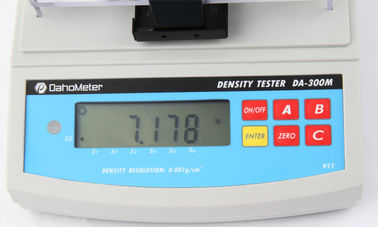

Original Factory Supply Digital Porosity Tester , Porosity Testing Machine DE-120M
------High-precision,Outstanding Performance, density resolution 0.0001 g/cm3,
Appropriate for Small Products.
Application:
Powder Metallurgy,magnetic Materials,Hard Alloy,Rubber,Plastic,Wire and Cable,Laboratory,Institute of New Materials Researching and Testing.Field of quality management,cost control,formula researching and developing,density test of small products and high-precision products,researchate of mrial density.
Standards: According to the ASTM D792,ASTM D297,GB/T1033,GB/T2951,JIS K6268,ISO 2781,ISO 1183,GB/T208,JB/T7780 standards etc.
Specification
Model:DE-120M
Density resolution: 0.0001 g/cm3
Maximum weight:120g
Minimum weight:0.001g
Measuring range: 0.0001—99.9999g/cm3
Model:DE-200M
Density resolution: 0.0001 g/cm3
Maximum weight:200g
Minimum weight:0.001g
Measuring range: 0.0001—99.9999g/cm3
Features
(1)No need to open and close the lid; Simple operation;Shorter time; According to the specification of new materials laboratory.
(2)Show the percentage composition of mixed samples for researching and developing new materials.
Apply to powder metallurgy,magnetic materials,ceramics,fireproofing materials,
precious metal and so on.
(3)Automatically judge whether the sample is qualified or not;prompt alarm.
(4)Function of solution compensation.necessary if liquid other than water is used as a medium for measurement.
(5)Function of setting actual water temperature,measuring medium density,and water proof medium density.
(6)Function of setting aerostatic buoyancy compensation and the bound of density.
(7)Adopt the completed high-capacity measurement accessories with the transparent
injection mould sink,which can resist wear,fall off,and corrosion.
(8)Adopt the completed special windproof and dustproof cover,which makes the instrument convenient and durable.
Interface of RS-232C is included.the printer of DE-40 will be available to connect PC with the instrument.
Standard Accessories:
Host,Sink,Test board,Tweezer,Thermometer,100G weight,Windproof and dustproof
cover,A set of measuring grain accessories,A set of measuring floating body
accessories,Power transformer
Measurement Procedure of Non-hydroscopicity Products:
(1)Place sample on test board to measure weight in air,and then press ENTER button to memory.
(2)Place sample into water to measure weight in water,and then press ENTER button to memory.
Density value is displayed.
Measurement Procedure of Hydroscopicity Products:
(1)Place sample on test board to measure weight in air,and then press ENTER button to memory.
(2)Place sample that did waterproof treatment into water to measure weight in water,and then press ENTER button to memory. Density value is displayed.
Technical Specification
| Brand |
Quarrz |
| Model |
AU-300VP |
AU-600VP |
AU-900VP |
AU-1200VP |
AU-120VP |
AU-200VP |
| Weight |
range |
0.005~300g |
0.005~600g |
0.01~900g |
0.01~1200g |
0.001~120g |
0.001~200g |
| Standard deviation |
0.005g |
0.005g |
0.01g |
0.01g |
0.001g |
0.001g |
| Density |
readability |
0.001 g/cm3 |
0.0001 g/cm3 |
| Testing board |
ABS injection moulding |
Aluminum alloy
die-casting moulding
|
| Density range |
0.001~99.999g/cm3 |
0.0001~99.9999g/cm3 |
| Oil content resolution |
0.1% |
0.01% |
| Result displaying |
Porosity,density,total volume,open pore volume,closed pore volume |
| Measuring principle |
Archimedes principle buoyancy method |
| Measuring time |
About 5 seconds |
|
Opening lid
method for
testing board
|
Unobstructed without lifting lid design |
| Water tank |
Completed injection moulding transparent PC water tank
(size:length15.3 cm×witdth10.7 cm×height9.3cm)
|
| Parameter setting |
Water temperature setting,measuring medium density setting,steeping liquor density setting,air buoyancy compensation setting |
| Calibration method |
Single key calibration,automatically testing |
| Standard components |
- host(2)water tank(3)testing board(4)tweezers(5)thermometers
(6)weight(7)windproof dustproof cover(8)power transformer
|
| interface |
Standard RS-232 interface |
| Optional accessories |
AU-40 printer,data connecting wire |
| Power supply |
Default as AC100V~240V 50HZ/60HZ(Europe standard).
according to user’s requirement
|
| Gross weight/size |
4.5kg/Length42.5 cm×Width17.5 cm×Height32.5cm |
