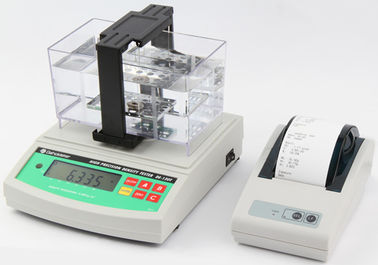

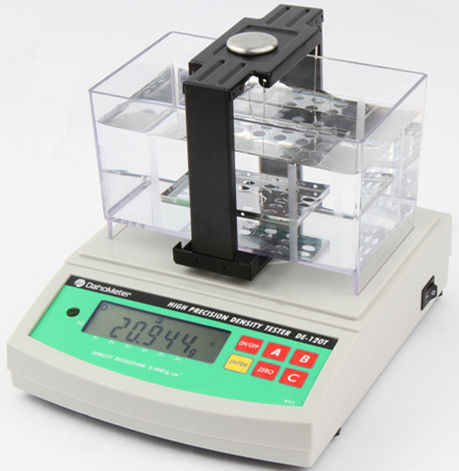

0.0001g/cm3 Factory Price Rubber Electronic Densimeter , Raw Plastic Density Meter , Plastic Density Tester DE-120M
------High-precision,Outstanding Performance, density resolution 0.0001 g/cm3,
Appropriate for Small Products.
Application:
Powder Metallurgy,magnetic Materials,Hard Alloy,Rubber,Plastic,Wire and Cable,Laboratory,Institute of New Materials Researching and Testing.Field of quality management,cost control,formula researching and developing,density test of small products and high-precision products,researchate of mrial density.
Standards:
According to the ASTM D792,ASTM D297,GB/T1033,GB/T2951,JIS K6268,ISO 2781,ISO 1183,GB/T208,JB/T7780 standards etc.
Specification
| Model |
DE-120M |
DE-200M |
| Density resolution |
0.0001 g/cm |
30.0001 g/cm3 |
| Maximum weight |
120g |
200g |
| Minimum weight |
0.001g |
0.001g |
| Measuring range |
0.0001—99.9999g/cm3 |
0.0001—99.9999g/cm3 |
Features
(1)No need to open and close the lid; Simple operation;Shorter time; According to the specification of new materials laboratory.
(2)Show the percentage composition of mixed samples for researching and developing new materials.
Apply to powder metallurgy,magnetic materials,ceramics,fireproofing materials,
precious metal and so on.
(3)Automatically judge whether the sample is qualified or not;prompt alarm.
(4)Function of solution compensation.necessary if liquid other than water is used as a medium for measurement.
(5)Function of setting actual water temperature,measuring medium density,and water proof medium density.
(6)Function of setting aerostatic buoyancy compensation and the bound of density.
(7)Adopt the completed high-capacity measurement accessories with the transparent
injection mould sink,which can resist wear,fall off,and corrosion.
(8)Adopt the completed special windproof and dustproof cover,which makes the instrument convenient and durable.
Interface of RS-232C is included.the printer of DE-40 will be available to connect PC with the instrument.
Standard Accessories:
Host,Sink,Test board,Tweezer,Thermometer,100G weight,Windproof and dustproof
cover,A set of measuring grain accessories,A set of measuring floating body
accessories,Power transformer
Measurement Procedure of Non-hydroscopicity Products:
(1)Place sample on test board to measure weight in air,and then press ENTER button to memory.
(2)Place sample into water to measure weight in water,and then press ENTER button to memory.
Density value is displayed.
Measurement Procedure of Hydroscopicity Products:
(1)Place sample on test board to measure weight in air,and then press ENTER button to memory.
(2)Place sample that did waterproof treatment into water to measure weight in water,and then press ENTER button to memory. Density value is displayed
Technical Specification:
| Brand |
Quarrz |
| Mode |
AU-300RP |
AU-120RP |
| Style |
economical |
standard |
| Weight range |
0.005~300g |
0.001~120g |
| Density resolution |
0.001 g/cm3 |
0.0001 g/cm3 |
| Density range |
0.001~99.999g/cm3 |
0.0001~99.9999g/cm3 |
| Abrasion loss |
0.1cm3 |
0.01cm3 |
| Testing board |
ABS injection moulding |
Aluminum alloy die-casting moulding |
| Measuring time |
About 5 seconds for density measuring |
| Memory method |
Two procedures for density measuring
Three procedures for abrasion measuring
|
|
Opening lid
method for
testing board
|
Rapid unobstructed without lifting lid design |
| Water tank |
Completed injection moulding transparent PC water tank(size:length15.3 cm×witdth10.7 cm×height9.3cm) |
| Parameter setting |
Water temperature setting,measuring medium density setting,waterproof medium density setting,top and bottom limitation setting,air buoyancy setting,weight loss value setting for referenced rubber,fixed weight loss value setting for referenced rubber,density setting for referenced rubber |
| Calibration method |
Single key calibration,automatically detection |
| Standard accessories |
- host(2)water tank(3)testing
board(4)tweezers(5)thermometers(6)weight(7)windproof dustproof
cover(8)one set of measuring granule accessory(9)one set of measuring floating accessory(10)power transformer
|
| Data interface |
Standard RS-232 interface |
| Optional accessories |
AU-40 printer,data connection wire |
| Power supply |
AC100V~240V 50HZ/60HZ European standard; customer can choose other international standards |
| Gross weight/size |
4.5kg/length42.5 cm×width17.5 cm×height32.5cm |
