    Product Details:

    Place of Origin: Dongguan
    Brand Name: Quarrz
    Certification: CE,FCC
    Model Number: AU-300VP

    Payment & Shipping Terms:

    Minimum Order Quantity: One set
    Price: USD399 to 1299 per unit
    Packaging Details: Standard exporting package 45*20*36cm
    Delivery Time: In stock
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Power Supply: European Type;British Type;Australian Type;American Type Customized: Yes
    Density Resolution: 0.001 G/cm3 Weight Resolution: 0.005g

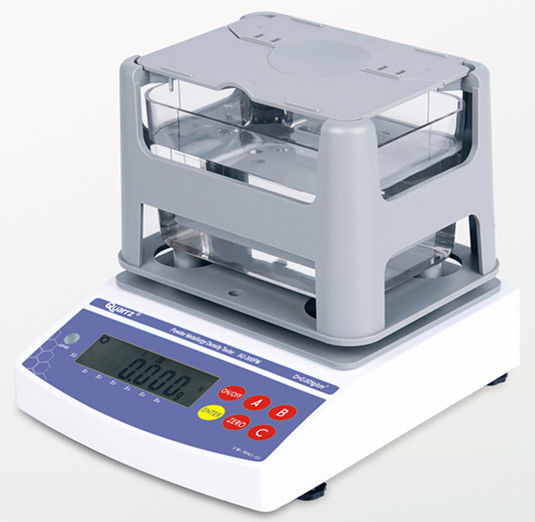

    Porosity Tester, Porosity Testing Machine, Density Tester for Fine Ceramic



    Application:industrial ceramic,accuracy ceramic,penetrable sintering metal materials,powder metallurgy,magnetic materials,coal and rock,polymer porosity materials,new materials researching laboratory.



    Porosity or void fraction is a measure of the void (i.e., "empty") spaces in a material, and is a fraction of the volume of voids over the total volume, between 0 and 1, or as a percentage between 0 and 100%.It can be calculated from the extra increased weight through dipping process.this instrument has been researched and developed by Quarrz;Adopt the high precision weighting sensor;Porosity can be read automatically;it has changed the manual computation method;save time,quick,convenient;function of testing density.



    Measuring Density:

    AU-120VP,AU-200VP density resolution:0.0001g/cm3,porosity resolution:0.01%

    AU-300VP,AU-600VP,AU-900VP,AU-1200VP

    density resolution:0.001g/cm3,porosity resolution:0.1%



    Function and Feature:

    • Easy operation,accuracy,reliability.
    • Any shape can be measured instantly,suitable for quick measurement situation.such as site and laboratory.
    • Either water or other liquid can be used as medium..
    • Dipping liquid density can be set personally.
    • Adopt completed testing board and unobstructed without lifting lid design,more simpler operation,also makes the measuring result more reliable.
    • Adopt completed injection moulding transparent PC water tank(length 15.3cm x width 10.7cm x 9.3cm),which can resist wear,fall off,and corrosion.
    • Equiped special windproof dustproof cover,which makes the structure more convenient and durable.
    • Including RS - 232C communication interface.it is convenient to connect PC with printer.DE-40 can be chose to print measuring data.
    • Gross weight/Size:4.5kg/length 42.5cm x width 17.5cm x height 32.5cm
    • Power supply:AC 100V-240V 50HZ/60HZ Europe standard(Default).according to user’s requirement



    Porosity Measuring Procedure:

    1.Place sample on testing board to measure weight in air.press ENTER key to memory.

    2.After did containing saturated processing,place sample on testing to measure weight.press ENTER key to memory.

    3.Place sample into water to measure weight in water.press ENTER key.porosity will be displayed.



    Standard Accessories:

    (1)host(2)water tank(3)testing board(4)tweezers(5)thermometers(6)weight(7)windproof dustproof cover(8)power transformer



    Anti-counterfeiting Announcement:

    The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.



    Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)



    Method two:After starting up,press ZERO key and B key at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.



    Method three:Check security code that generate automatically by machine number.



    Technical Specification

    Brand Quarrz
    Model AU-300VP AU-600VP AU-900VP AU-1200VP AU-120VP AU-200VP
    Weight range 0.005~300g 0.005~600g 0.01~900g 0.01~1200g 0.001~120g 0.001~200g
    Standard deviation 0.005g 0.005g 0.01g 0.01g 0.001g 0.001g
    Density readability 0.001 g/cm3 0.0001 g/cm3
    Testing board ABS injection moulding Aluminum alloy die-casting moulding
    Density range 0.001~99.999g/cm3 0.0001~99.9999g/cm3
    Oil content resolution 0.1% 0.01%
    Result displaying Porosity,density,total volume,open pore volume,closed pore volume
    Measuring principle Archimedes principle buoyancy method
    Measuring time About 5 seconds

    Opening lid

    method for

    testing board

    Unobstructed without lifting lid design
    Water tank Completed injection moulding transparent PC water tank(size:length15.3 cm×witdth10.7 cm×height9.3cm)
    Parameter setting Water temperature setting,measuring medium density setting,steeping liquor density setting,air buoyancy compensation setting
    Calibration method Single key calibration,automatically testing
    Standard comonents

    (1)host(2)water tank(3)testing board(4)tweezers(5)thermometers

    (6)weight(7)windproof dustproof cover(8)power transformer

    interface Standard RS-232 interface
    Optional accessories AU-40 printer,data connecting wire
    Power supply Default as AC100V~240V 50HZ/60HZ (Europe standard).according to user’s requirement
    Gross weight/size 4.5kg/Length42.5 cm×Width17.5 cm×Height32.5cm
