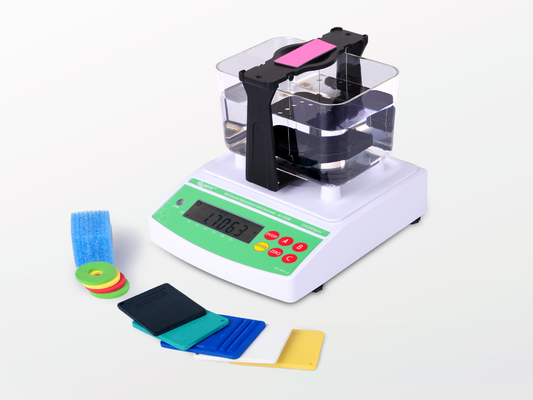

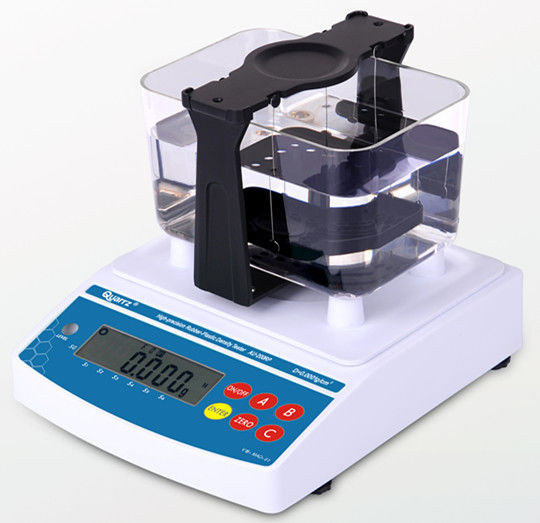

AU-120S Electronic Gravitometer, Specific Gravity Tester, Specific Gravity Meter for Solids
Application:
Rubber,plastic,tire,shoe materials,wire and cable,electrical apparatus,packing materials,sports goods,sports equipment,glass,hard alloy,metal,powder metallurgy,magnetic materials,fireproof materials,mineral and stone,new materials laboratory.,etc.
Standards:
In accordance with ASTM D792,ASTM D297,GB/T1033,GB/T2951,GB/T3850,GB/T533,HG4-1468,JIS K6268,ISO 2781,ISO 1183,GB/T9867,DIN-53516,ISO-4649,GB/T168,GB/T1689.,etc.
These series instrument is the dramatic updating and upgrading products.Compared with other competing products,it has been made much progress on reliability;Eliminated the problem:machine crash,button failure,suspension wire bend,the easy touch between nacelle and container,fragile slot;Improved measurement resolution,simplified operation procedure,and upgraded application function for software.which makes these machine very popular among lots of customers.
Measuring Type:
(1)All kinds of alloy materials,hard alloy,precious metal materials,motor vehicle parts,aerosb pace parts,metal seal parts,powder metallurgy,ceramic,magnetic materials.
(2)All kinds of rubber,plastic,plates,sheets,tubing,wire,bar,seal ring,silica gel,high-molecular polymer.
(3)All kinds of granule of rubber,plastic,PP,PE,PVC,PC;nylon resin,engineering plastic,general purpose plastic,reinforced plastic.
(4)All kinds of shoe sole materials,ball products,helmet,EPO materials,EVA materials,PU materials,elastomer.
(5)All kinds of thin film;film of PET,PE,PS,PVC,graphite.
(6)All kinds of viscous,colloid,glass glue,protective glue,curing adhesive,body skin creme,cosmetic,toothpaste.
(7)All kinds of rock,gem,diamond,jade,emerald,fossil,shell,cultural relic.
(8)All kinds of metal powder,rubber powder,plastic powder,cement powder,and additive.
(9)All kinds of crop,potato,corn,unhusked rice.
Features:
(1)Solid samples with any shape can be measured.such as granule,thin film,floating,foaming,powder.,etc.
(2)No cap design,more better easy operation.
(3)Excellent weight precision.
(4)Function of 10 group data storage.and automatical measuring value of average,maximum,and minimum.
(5)Measuring volume,percentage of volume.
(6)Either density is less than one or more than one can be measured.
(7)Function of automatic zero tracking,buzzer warning,and overload warning.
(8)Function of actual water temperature compensation.would adapt to the changing testing environment
(9)Either water or other liquid could be as medium.
(10)Adopt completed injection moulding high capacity transparent PC sink.(length15.3cmXwidth10.7cmXheight9.3cm)
(11)Adopt completed injection moulding windproof dustproof cover;Convenient configuration;Better durability.
(12)Density of liquid can be measured by choosing liquid measurement accessories.
(13) Including RS-232 interface;It's convenient to connect PC and printer;AU-40 could be available to print result.
(14) Gross weight/size:4.5kg/length42.5cm X width17.5cm X height32.5cm
(15)Power supply:Europe standard AC100V-240V;50HZ/60HZ
Measurement resolution:
(1)The density resolution for AU-300S,AU-600S,AU-900S,AU-1200S:0.001g/cm3
(2)The density resolution for AU-120S,AU-200S:0.0001g/cm3
Measuring Procedure:
(1)Place sample on testing board to measure weight in air;press ENTER key to memory.
(2)Place the sample into water;density value will be displayed(No need to press ENTER key)
Anti-counterfeiting Announcement:
The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.
- Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)
- Method two:After starting up,press ZERO button and B button at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.
- Method three:Check security code that generate automatically by machine number.
Technical Specification:
| Brand |
QUARRZ |
| Model |
AU-300S |
AU-600S |
AU-900S |
AU-1200S |
AU-120S |
AU-200S |
| Weight |
Range |
0.005~300g |
0.005~600g |
0.01~900g |
0.01~900g |
0.001~120g |
0.001~200g |
| Standard deviation |
0.005g |
0.005g |
0.01g |
0.01g |
0.001g |
0.001g |
| Density |
resolution |
0.001 g/cm3 |
0.0001 g/cm3 |
| Measuring board |
ABS injection molding |
Aluminum alloy
die-casting molding
|
| Range |
Either density is more than one or less than one can be meastured |
| Measturement type |
Any shape of solids |
| Result display |
Density,volume,percentage,average value,maximum value,and minimum value |
| Measturement principle |
Archimedes buoyancy method |
| Measturement time |
About 5 seconds |
|
The method of
opening cap
|
Rapid unimpeded no lifting cap design |
| Sink |
PC completed high capacity transparent PC sink(Size:length15.3 cm X width 10.7 cm X height9.3cm) |
| Measturement procedure |
Place sample on test board, then press ENTER button to memory.
Place the sample into water,density value is displayed.
|
| Parameter setting |
Water temperature setting,measuring medium density setting,primary materials and secondary materials setting,air density setting,suspension wire buoyancy deviation setting |
| Data statistics |
Function of 10 group data storage;Automatically display average value,maximum value,and minimum value according to data storage. |
| Liquid measuring |
Choose liquid measuring accessories |
| Calibration method |
Single button calibration,automatically testing |
| Standard accessories |
host,sink,measuring board,tweezers,thermometer,weight,windproof dustproof
shield,one set of measuring granule accessories,one set of measuring floating accessories,power transformer
|
| Data interface |
Standard RS-232 interface |
| Optional accessories |
AU-40 printer,data connecting wire |
| Power |
AC110V~220V 50HZ/60HZ (Europe standard) |
| Gross weight/Packing size |
4.5kg/Length 42.5 cm X width 17.5 cm X height 32.5cm |
