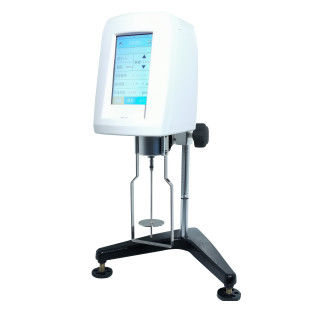

Digital High Viscosity Meter, Touch Screen laboratory Rotational Viscometer for Cosmetics Food

Digital High Viscosity Meter, Touch Screen laboratory Rotational Viscometer for Cosmetics Food

Digital High Viscosity Meter, Touch Screen laboratory Rotational Viscometer for Cosmetics Food

Product Details:

Place of Origin: Dongguan
Brand Name: DahoMeter
Model Number: DH-LVDV-1T

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: USD499 to 1999 per unit
Packaging Details: Standard exporting package
Delivery Time: 5 to 8 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Usage: Digital High Viscosity Meter, Control/display: 5 Inch Color Touch Screen
Rotate Speed(r/min): 0.3 – 100 Stepless Speed Change A Total Of 998 Speeds Are Available Range Of Measurement  : 1-2 Million.mPa.s
After-sale Customer Service: Yes Testing Before Delivery: Yes


Digital High Viscosity Meter, Touch Screen laboratory Rotational Viscometer for Cosmetics Food



The DVT series rotary viscometer is perfectly integrated with touch screen technology, and uses a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful, stepless debugging, can measure ultra-high viscosity samples.

It can build 30 sets of test programs by itself and save 30 ancestor test data. The 5-inch large color touch screen can comprehensively and visually display various parameters and working conditions. It has obvious advantages such as multiple measurement parameters, rich display content, convenient operation, intuitive reading, high measurement accuracy, stable rotation speed, strong anti-interference performance, curve showing shear rate and viscosity, and wide working voltage. It can replace similar imported instruments.



Main Features:



①Adopt ARM technology, built-in Linux system. The operation interface is simple and clear, through the creation of test procedures and data

Analysis, quick and convenient viscosity test;

② Accurate viscosity measurement: each range is automatically calibrated by computer, with high accuracy and small error;

② Rich display content: In addition to viscosity (dynamic viscosity and kinematic viscosity), there are temperature, shear rate, shear

Stress, measured value as a percentage of full scale value (graphic display), range overflow alarm, self

Maximum scanning range, date, time, etc. under dynamic scanning, current rotor speed combination. and

It can display kinematic viscosity under the condition of known density to meet different measurement requirements of users;

④ Complete functions: timing measurement, self-built 30 sets of test programs, access to 30 sets of measurement data, real-time display of viscosity

Curves, print data and curves, etc.;

⑤ Front level gauge: level adjustment is intuitive and convenient;

⑥ Stepless speed regulation: RV1T series: 0.3-100 revolutions, a total of 998 speeds

RV2T series: 0.1-200 rpm, a total of 2000 speeds

⑦Display the curve of shear rate versus viscosity: the range of shear rate can be set and displayed on the computer in real time; also

Curve showing time versus viscosity

⑧ Optional Pt100 temperature probe: wide temperature measurement range, from -20 to 300℃, temperature measurement accuracy of 0.1℃;

⑨Various optional accessories: constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil)

Wait;

⑩ Chinese and English operating system.

Stepless speed regulation LVDV / RVDV / HADV / HBDV series viscometer can measure a very large range, from 1 to 320 million mPa.S, covering almost most of the samples.

The performance is equivalent to the imported viscometer of the same type and can be used instead.

Widely used in paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products and other industries and samples that need to be heated and melted such as paraffin, polyethylene wax, rosin, asphalt, heat Melt glue etc.



Detailed technical parameters:



Model DH-LVDV-1T DH-LVDV-2T
Control/display 5 inch color touch screen
rotate speed(r/min)

0.3 – 100 stepless speed change

A total of 998 speeds are available

0.1 -- 200 CVT

A total of 2000 RPM is available

range of measurement 1-2 million.mPa.s 1-6 million mPa.s
rotor

No. 1-4 (Standard)

Enhanced ultra-low viscosity adapter ULR (optional)

A few sample adapters (18, 25, 31, 34 rotors) (optional)

Sample dosage

Rotor No. 1-4: Range 10-2M

300-400ml

ULR: Range 1-1000, 21ml

Rotor No. 18: Range 3-10K, 7ml

Rotor No. 25: 480-1.60M; 9ml

No. 31 rotor: 30-100K; 10.5ml

No. 34 rotor: 20-200K; 11ml

Rotor No. 1-4: Range 10-6M

300-400ml

URL: Range 1-1000, 21ml

No. 18 rotor: range 1.5-30K, 7ml

Rotor 25: 240-4.8M; 9ml

Rotor No. 31: 15-300K; 10.5ml

No. 34 rotor: 30-600K; 11ml

K = 1000; M = 1000000
Measurement error ±1% (Newtonian liquid)
Repeat error ±0.5% (Newtonian liquid)

Show cut

/Shear rate

Standard
Timing function Standard

real-time display

Viscosity curve

Temperature-viscosity curve

Time-viscosity curve

(Optional data processing software can display the curve of shear rate and viscosity)

Kinematic viscosity Need to enter the density of the sample
Temperature measurement function Standard temperature probe interface (requires optional temperature probe)
Automatic scanning function Automatically scan and recommend the preferred combination of rotor and speed
Maximum measuring range Automatically displays the measurable viscosity range of the selected rotor and speed combination
Self-built measurement program Can save up to 30 groups (including rotor, speed, temperature, time, etc.)
Save measurement results Up to 30 sets of data can be saved (including viscosity, temperature, rotor, speed, shear rate, shear stress, time, density, kinematic viscosity, etc.)
print Data and curve can be printed (printing interface is standard, printer is required)
Data output interface RS232
Constant temperature parts Options (including various constant temperature baths, constant temperature cups for various viscometers)
Working power Wide voltage operation (110V / 60Hz or 220V / 50Hz)
Dimensions 300 × 300 × 450(mm)
