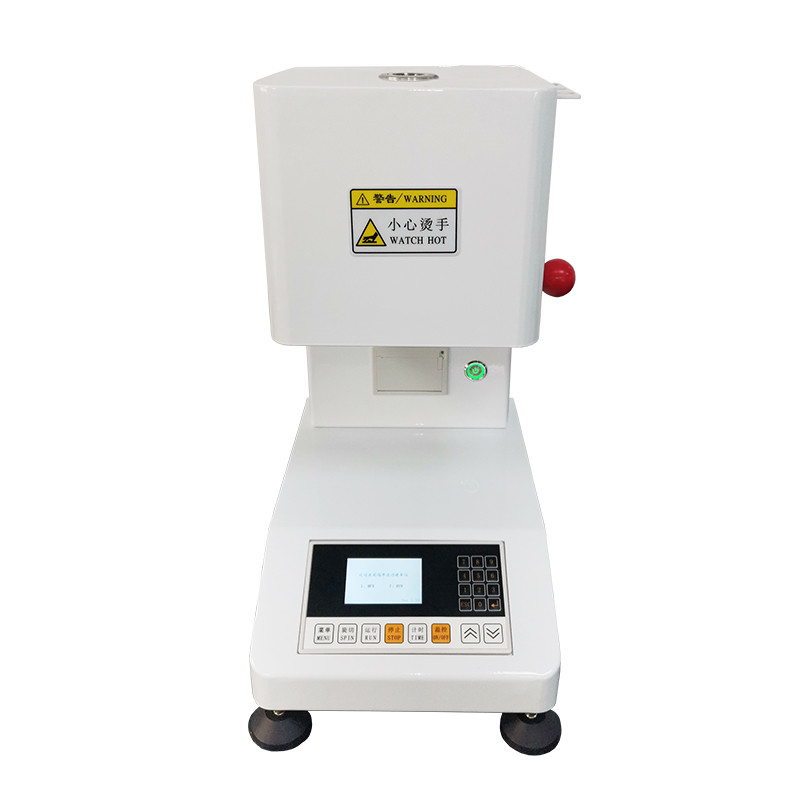

DH-MI-BP Hot Selling Plastic Melt Flow Index Tester, MFI Testing Machine, MFI Tester
Melt Flow Index Tester used to measure the thermoplastic resin melt mass flow rate (MFR), melt flow rate (MVR) volume and the density of the melt, it is not only applicable to the high melting temperature of polycarbonate, nylon, fluorine plastic, aromatic sulfones engineering plastics, also applies to polyethylene, polystyrene, polypropylene, ABS resin, poly formaldehyde resin with lower melting temperature, such as plastic test, widely used in plastic raw materials, products, petroleum and chemical industries, and related colleges and universities, scientific research units and the commodity inspection department.
This series of melt indexer is specially designed for fast and accurate measurement. It has the characteristics of firm structure, easy operation, stable and reliable performance. It uses high-precision PID thermostat technology, high temperature control precision, nitriding of key parts, high strength and hardness. The thermal expansion deformation is small. DH-MI-BP is a regular model, manual loading weight with automatic cutting function.
Usage:
It is used to determine the melt mass rate flow rate MFR value or melt volume rate flow rate MVR value of various plastics and resin polymers in the viscous flow state. It is suitable for polycarbonate, polyarylsulfone,fluoroplastics and nylon which has higher melting temperature.It is also suitable for polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyoxymethylene (POM), and polycarbonate (PC) resins.which has lower melting temperatures
Remarks: Testing fluorine material is optional
According to the standards:
The melt flow rate meter is suitable for the determination of the mass flow rate of thermoplastic melts specified in the national standard GB/T3682.1-2018 Determination of melt flow rate and melt volume flow rate of thermoplastics. It adopts the ISO 1133 regulations and meets the ASTM D1238 test standard. It complies with JB/T5456 "Melt Conditioner of Melt Flow Rate Meter" and JJG 878 - "Melt Flow Rate Meter" standard specification.
Main Features:
- Easy to understand measurement steps
- Stable and reliable, long life
- PID temperature control, fast heating rate, high temperature accuracy
- Better temperature stability and uniformity
- After the filler, it can quickly restore the constant temperature state
- Multilingual application,features for different country uses
|
- With automatic cutting device, you can set the cutting time at will.
- With a printer, the test results are automatically printed out.
- RS232 interface, can directly connect to the computer to output data
- After the measurement is completed, the measurement data can be automatically printed out.
- The average number can be read automatically by the DE-120 densimeter (optional)
|
Specification:
| Brand |
DahoMeter |
| Model |
DH-MI-BP |
DH-MI-VP |
DH-EI-BP |
DH-EI-VP |
DH-AI-VP |
| Weight loading method |
Manual |
Manual |
electric |
Electric |
Automatic |
| Testing result |
Mass |
Mass and volume |
Mass |
Mass and volume |
Mass and volume |
| MFR |
MFR and MVR |
MFR |
MFR and MVR |
MFR and MVR |
| Outlet diameter |
Φ2.095±0.005mm,Outlet length:8.000±0.025mm |
| Loading cylinder diameter |
Φ9.550±0.007mm,Loading cylinder length:152± 0.100mm |
| Piston head diameter |
Φ9.475±0.007mm,Piston head length:6.350±0.100mm |
| Standard test load |
A total of 8 full set of weights |
| Temperature control range |
Room temperature～400℃(Optional～500℃) |
Room temperature ~450℃ |
| Temperature control resolution |
0.1℃ |
0.1℃ |
0.1℃ |
| Constant temperature accuracy |
0.5℃ |
0.5℃ |
0.2℃ |
| Displacement resolution |
None |
0.001mm |
0.001mm |
| Temperature control 4h drift |
No less than ±0.5℃ |
| Cartridge temperature recovery time after feeding |
≤4min |
| Clock range |
0～6000s |
| Clock resolution |
0.1-1s |
| Countdown time setting |
Freely set |
| Automatic cutting device |
Set the interval time (any adjustable from 2 to 2000s) ,automatically complete the cutting |
| Jog cutting device |
Manual button electric cutting |
| Manual cutting device |
Manually rotating the handle to cut |
| Weight load accuracy |
≤±0.5% |
| Weight load range |
325-21600g discontinuous, combined load can meet standard requirements |
| Measuring range |
0.1～100g/10min |
| Power supply |
AC220V / 50HZ or AC110V /60HZ; Choose different power supply voltages |
| Net weight |
48KG |
| Gross weight |
63KG |
