DH-300G-T Constant Temperature Volume and Density Tester Digital Solid Density Meter Volume Measurement

DH-300G-T Constant Temperature Volume and Density Tester, Digital Solid Density Meter Volume Measurement

Parts of different products have different volume change coefficients at different temperatures. Measuring volume change is the basic parameter of each product's performance. It is related to the service life of the product in the natural environment. This series of products are suitable for measuring volume change and density under different temperature conditions.

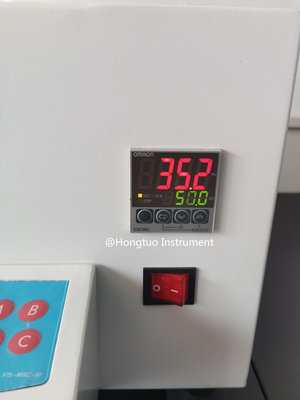

The sensor is imported from Germany, which has high accuracy and good stability; the measuring frame is made of aluminum alloy material, and the open structure design ensures the stability of the weighing system and the convenience of taking samples; the use of Omron temperature control system and PT100 temperature sensor, The temperature required for measurement can be set between normal temperature to 100°C, and the temperature can be automatically kept to the set temperature, with a constant temperature accuracy of 1 degree; the constant temperature device and the volume measuring device are integrated, and the measurement is fast, and the accuracy is high.

Application:

Battery industry, motor vehicle parts, aerospace parts, large mechanical parts, hard alloys, precious metal products, rare earth permanent magnets, magnetic materials, rare earth materials, non-ferrous metals, rare metals, powder metallurgy, ceramics industry, metal seals , Metallurgical industry, forging industry, fireproof materials, large rubber and plastic parts, large foam, sporting goods, shoe soles, rocks, geology, mining, civil engineering, cultural relics and archaeology, key laboratories, materials science research laboratories.

Features:

1. Meet the volume and density detection of solid products

2. Electronic temperature display, with constant temperature function, temperature range from normal temperature to 100℃

3. German imported sensors, stable performance and accurate measurement

4. Open measuring frame design, easy to take samples

5. Instant volume display, simple operation, fast time, suitable for on-site rapid detection without manual calculation.

6. Density >1, <1 can be measured

7. It has the function of actual water temperature compensation to avoid deviation of measurement results caused by different water temperatures

8. Use water as medium, other liquid mediums can also be used

9. With RS-232C communication interface, it is convenient to connect PC and printer. DE-40 printer can be purchased to print measurement data

Technical Specification:
