High Precision Izod & Charpy Impact Testing Machine, Electronic Charpy Izod Impact Tester HT-5-50D-CM
The digital display Izod and Charpy Impact Tester is used to measure the impact toughness of non-metallic materials such as plastic, reinforced nylon, fiberglass, ceramics, cast stone, plastic electrical appliances, and insulating materials. It is a common equipment for quality inspection by scientific research institution, universities and non-metallic materials manufacturers. It has the feature of simple structure, easy operation and high test accuracy.
►Standards
ISO179 "Plastics - Determination of Charpy Impact Strength of Rigid Materials"
ISO180 "Plastics - Determination of Izod Impact Strength of Rigid Materials"
GB/T1043 "Rigid Plastic Charpy Impact Test Method"
JB/T8762 "Plastic Charpy Impact Testing Machine"
JB/T8761 "Plastic Izod Impact Testing Machine"
GB/T18743 "Charpy impact test method for thermoplastic pipes for fluid transportation" (applicable to pipe parts)
►Features
- Integrated impact of Izod and Charpy, no need to disassemble the fixture and sample holder;
- High-precision intelligent controller, equipped with LCD display, can read data intuitively and accurately;
- On the impact pendulum, carbon fiber pendulum is used to improve the rigidity of the material, and concentrate the impact mass on the center of mass of the pendulum, so as to achieve no vibration impact test and increase the service life;
- Adopt Imported high-resolution digital encoder, and the angle test accuracy is higher and more stable;
- The impact hammer and imported ball bearings in line with aerodynamic principles reduce the friction loss caused by machinery;
- The impact hammer and imported ball bearings in line with aerodynamic principles reduce the friction loss caused by machinery;
- Optional Chinese and English operating interface, test results can be selected in J/m, KJ/㎡, kg-cm/cm, ft-ib/in and other units;
- Equipped with a brake device, greatly improving safety and testing efficiency.
►Patameter
| Model |
HT-5D-CM |
HT-50D-CM |
HT-5-50D-CM |
| Izod pendulum energy |
1J, 2.75J, 5.5J |
11J, 22J |
1J, 2.75J, 5.5J, 11J, 22J |
| Charpy pendulum energy |
1J, 2J, 4J, 5J |
7.5J, 15J, 25J, 50J |
1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J |
| Charpy impact speed |
2.9m/s |
3.8m/s |
2.9m/s(≤5J), 3.8m/s(≥7.5J) |
| Charpy pendulum center distance |
230mm |
395mm |
230mm(≤5J), 395mm(≥7.5J) |
| Izod impact speed |
3.5m/s |
| Izod pendulum center distance |
335mm |
| Pendulum angle |
150° |
| Measurement accuracy |
±0.1% |
| Resolution |
0.03% |
| The distance from the izod impact blade to the upper plane of the jaw |
22mm±0.2mm |
| Izod edge fillet radius |
R=0.8mm |
| Charpy impact edge fillet radius |
R=2mm±0.5mm |
| Charpy impact blade angle |
30°±1° |
| Charpy impact edge fillet radius |
R=1mm±0.1mm |
| Charpy impact support front angle |
5° |
| Charpy impact support rear angle |
10° |
| Output mode |
Printout or U-disk output |
| Supply voltage |
110~230VAC 50/60Hz |
| Appearance size (L*W*H) |
85cm*37cm*65cm |
106cm*37cm*78cm |
106cm*37cm*78cm |
| Weight |
About 80kg |
About 100kg |
About 120kg |
The sample type meets the requirements of GB1843-80, ISO180-82 and JB/T8761_1998.
Remarks: Pendulum energy can be selected according to requirements.

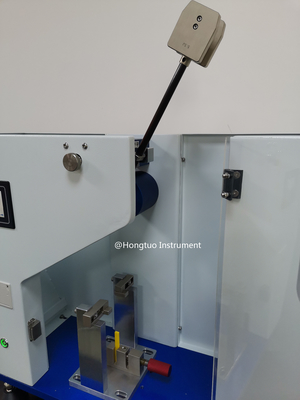

►Detail Images
