Sponge Dynamic Fatigue Testing Machine, Foam Fatigue Performance Testing Equipment HT-2819
Product Details:
| Place of Origin: |
Dongguan, China |
| Brand Name: |
DahoMeter |
| Certification: |
CE, FCC |
| Model Number: |
HT-2819 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
one set |
| Price: |
negotiable |
| Packaging Details: |
standard exporting wooden package |
| Delivery Time: |
5-8 working days |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
300 sets per month |
Contact Now
Detailed Product Description
| Control Method: |
Touch Screen Control |
Induction Method: |
Precision Load Cell |
| Test Force Value Range: |
0—200kg Can Be Set |
Unit Switching: |
Kg, N, LB |
| Range Of Test Times: |
1-999999 Times, Configurable |
Power Supply Single-phase: |
220V, 50Hz/60Hz |
Sponge Dynamic Fatigue Testing Machine, Foam Fatigue Performance Testing Equipment HT-2819
Introduction:
This machine is used to test the thickness loss and hardness loss test of the fatigue performance of flexible foam polymer materials.
Specifications:
| The number of test cycles |
80,000 times, but the test cycle number of this instrument can reach 100,000 times, and it is equipped with an automatic adjustment device. Other specifications meet the QB/T 2819-2006 standard |
| Control method |
touch screen control |
| Induction method |
precision load cell |
| Test force value range |
0—200kg can be set |
| Unit switching |
Kg, N, LB |
| Upper pressure plate |
diameter 200mm, bottom rounded corner R1mm |
| Lower platform |
420×420mm, vent diameter 6mm, spacing 20mm |
| Maximum stroke |
200mm |
| Testing speed |
100±20mm/min |
| Range of test times |
1-999999 times, configurable |
| Power source |
servo motor |
| Transmission mode |
precision ball screw |
| Power supply |
single-phase 220V, 50Hz/60Hz |
| Equipment weight |
about 160kg |

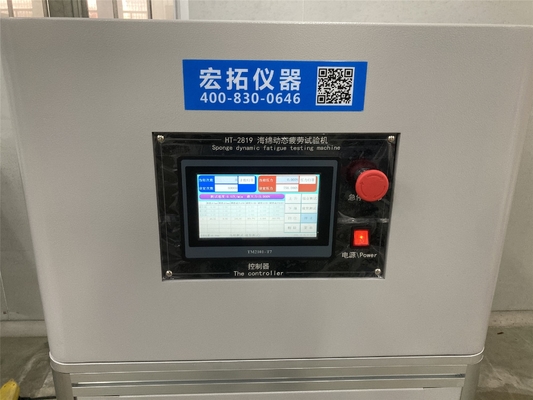

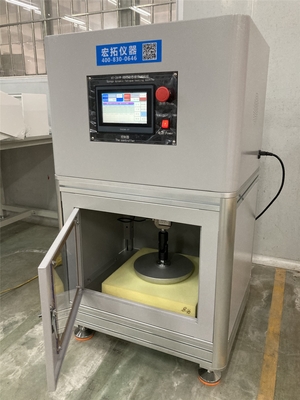

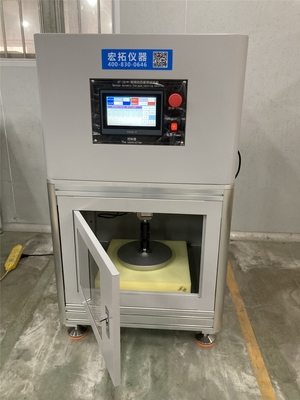

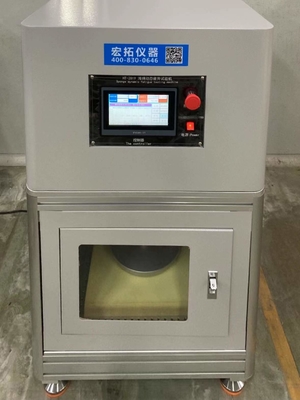

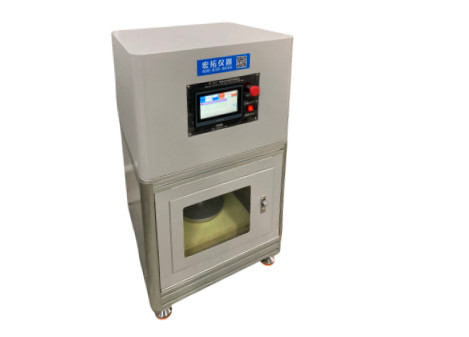

Detailed Images:
