Place of Origin: | Dongguan China |
Brand Name: | DahoMeter |
Certification: | ISO,SGS |
Model Number: | DH-CC-01 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiable |
Packaging Details: | standard exporting package |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 sets per month |
Working Power Supply: | AC220V 50HZ | Return Speed: | 10~150 Mm/min (can Be Set Arbitrarily) |
---|---|---|---|
Dynamical System: | AC Variable Frequency System | Good Quality Assurance: | Yes |
Quick Delivery: | Yes | Product Name: | Carton Compression Testing Machine |

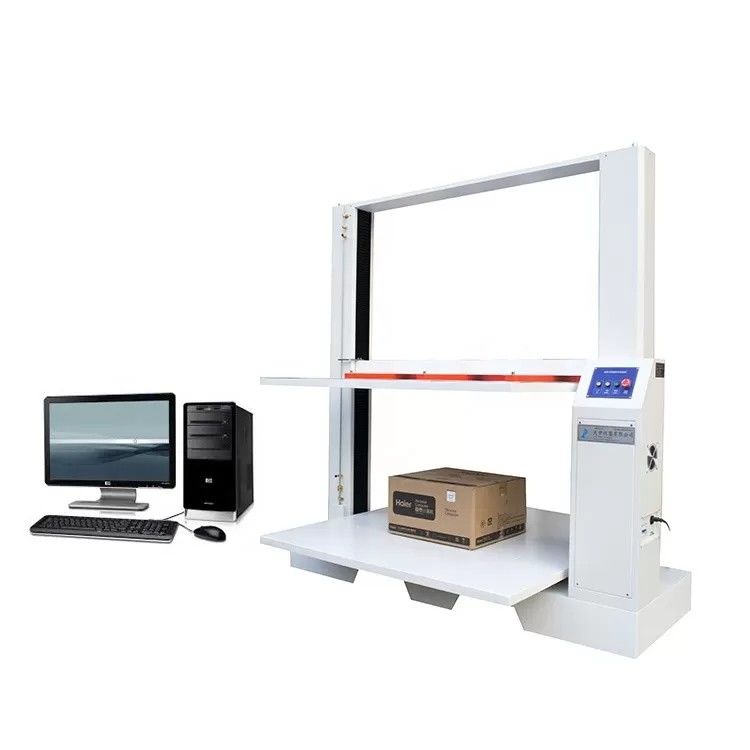

Carton Box Compressive Strength Testing Machine
Construction:
Box compression test machine servo motor drive system, through the ball screws pressure operation, high-precision Force sensor accurately reflect the load status of the specimen, microcomputer System acquisition processing test parameters, output display test results
Force Measurements:
Compression test machine adopts Panasonic servo motor, test speed: (0.1-200) mm/min (computer arbitrary adjustment), maximum test Force in 2000KG (20KN) load decomposition in 1/250,000 range, load accuracy: ± 0.25%; unit switch: kgf, IBF, N, kn, T and other units conversion. The upper and lower stroke limit device.
Speed Controlled:
Computer-controlled motherboard touch screen, the computer adopts TM2101 advanced computer system software control, Windows mode operation, accurate test speed range in: (0.1-200) mm/min (computer arbitrary adjustment), load decomposition degree: 1/250,000, load accuracy: ± 0.25%, overload emergency shutdown safety device.
Software system:
The TM2101 software is designed purposely for computer controlled compression testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
