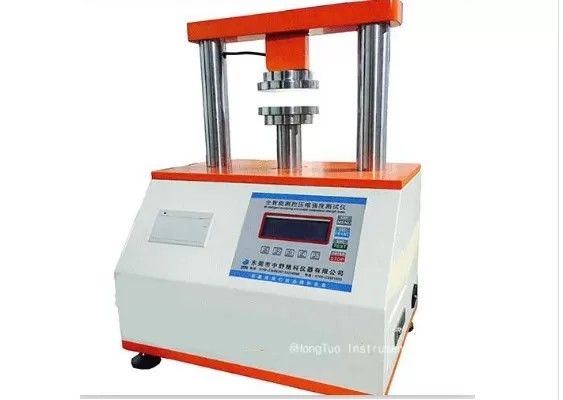

Microcomputer Edgewise Crush Resistance tester/Ring Crush Compression Resistance for Carton and Cardboard
The automatic intelligent computer monitoring and controlling paperboard compression strength tester is an efficient and easy-to-use instrument.Mainly used to test the corrugated paper, cardboard (kraft liner), corrugated cardboard .Applicable to the measuring of paper and cardboard ring crush strength (RCT) and flat crush strength (CCT), corrugated board edgewise crush strength (ECT), adhesion (peeling) strength (PAT), flat crush strength (FCT) and compression strength test for other material .
Technical Specifications:
Parameter item
Technical index
Measuring range
(0～3000N)(0-30000N/M)
Resolution
1N
Accuracy of the indicating value
Error of indication±1%,variation of indication≤1%
Test speed
(12.5±2.5)mm/min
Degree of parallelism for the upper and lower pressure plates
＜0.05mm
The standard pressure plate
￠100mm
The maximum distance between upper and lower pressure plates.
about 70mm
Displaying mode
LCD display in English
Printing function
High-speed thermal printer(printing content: serial number,the maximum value,the minimum value,peak value ,average value,etc)
Working power supply
AC220V 50Hz
Machine weight
about 45kg
Size
360mm × 330mm × 550mm
Design standards
CNS2956,JISP8126,TAPPIT472,GB/T2679.6-1996,GB/T6548-1998,GB/T6544-2008
Standard configuration: a piece of clamp
Optional configuration: edge pressure sampler; ring pressure sampler, ring pressure center plate; flat pressure fixture; bonding strength fixture (optional)
Edge pressure test sampler: mainly used for the sampling of edge pressure test and peel test
The technical parameters of the edge pressure test sampler:
The maximum thickness of sample:18mm
Standard length of sample: 100(80)mm±0.5 mm
Standard width of sample: (25±0.5)mm
Outline dimension: 390mm(length)×350mm(width)
Product net weight: ≤9.0kg
Product gross weight: ≤13.0kg
Ring pressure test sampler: The ring pressure special sampler is suitable for cutting the sample required for the paper ring pressure strength and the flat pressure strength test of corrugated core paper, conforms to the relevant provisions of the QB/T1671 standard, and is a necessary and dedicated sampler for paper ring pressure strength testing (RCT).The dedicated sampler is an ideal assistance tool for paper making, packaging, scientific research, and quality inspection,etc.
The main technical parameters of the ring pressure test sampler:
The sampling size: 152mmX12.7 mm
The sampling thickness: (0.1~1.0)mm
Outline dimensions (length X width X height),mm:380*120*250
Weight: about 10kg
Feature: Punching sampling, high sampling accuracy
