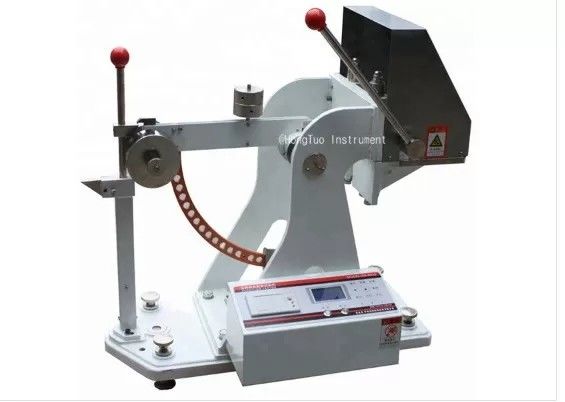

Full Automatic Digital Displaying Corrugated Cardboard Carton Puncture ( Piercing ) Strength Tester / Testing Machine

Full Automatic Digital Displaying Corrugated Cardboard Carton Puncture ( Piercing ) Strength Tester / Testing Machine

    • Full Automatic Digital Displaying Corrugated Cardboard Carton Puncture ( Piercing ) Strength Tester / Testing Machine
    • Full Automatic Digital Displaying Corrugated Cardboard Carton Puncture ( Piercing ) Strength Tester / Testing Machine
  • Full Automatic Digital Displaying Corrugated Cardboard Carton Puncture ( Piercing ) Strength Tester / Testing Machine

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: DahoMeter
    Certification: ISO,SGS
    Model Number: DH-CP-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: standard exporting package
    Delivery Time: 3 DAYS
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Carton Puncture Strength Tester Testing Before Deliver: Yes
    After-sale Customer Service:: Yes Measuring Range:: (1~48)J
    Pointer Friction:: <0.25J Edge Circular Bead Radius: (1.5±0.1)mm

    Full Automatic Digital Displaying Corrugated Cardboard Carton Puncture ( Piercing ) Strength Tester / Testing Machine





    This instrument is a special test instrument for testing the anti-puncture performance (punch strength) of the corrugated cardboard. This instrument has the characteristics of rapid compaction, automatic reset of the operating handle and reliable safety protection, with a LCD displaying, thermal printer, etc., and has a wide range of application. It is an indispensable and common instrument for paperboard and carton production, scientific research and commodity inspection companies and departments,etc.



    The instrument meets the following standards:


    In accordance with ISO3036 (cardboard - measurement of puncture strength)
    Designed in accordance with the relevant provisions of GB2679·7.


    The technical parameters of the full-automatic cardboard puncture strength tester:

    • Measuring range: (1~48)J
    • Error of indication:

    A Ruler:±0.05J
    B Ruler:±0.1J
    C Ruler:±0.2J
    D Ruler: ±0.5J (Within the range of 20% to 80% of the upper limit value of each measurement)

    • Pointer friction:<0.25J
    • Pendulum shaft friction and air resistance (Measured by swing number of swing arm)
    • Pyramid three base lengths: 60mm x 60mm x 60mm, height (25 ± 0.7) mm,
    • Edge circular bead radius: (1.5±0.1)mm
    • Working environment: temperature 5~35℃, relative humidity is not exceeded to 85%.
    • Power supply: AC220V±10% 2A 50HZ
    • Outline dimension: 800×500×750 mm
    • Instrument weight: 110kg


    Features:


    1. Full computer control technology, open structure, high automation program, simple and convenient operation, safe and reliable
    2. Full-automatic measurement, intelligent judgment function, Real time displaying the testing results of the operation system .

    3. Automatically measure, count, print test results, and have data storage capabilities;

    4. English graphic menu display operation interface, easy and convenient to use;
    5. High-speed micro-printer, high-speed printing, easy to use, low failure rate;
    6. Mechatronics modern design concept, compact structure, beautiful appearance, easy maintenance;
