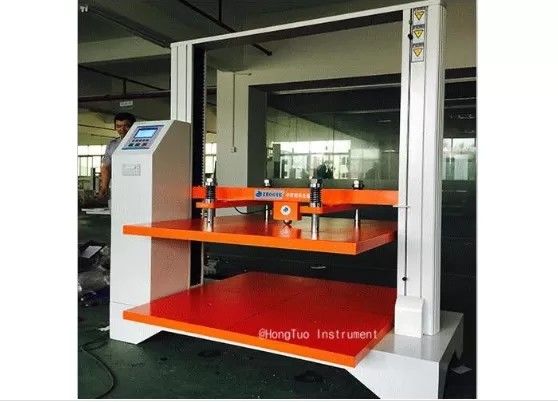

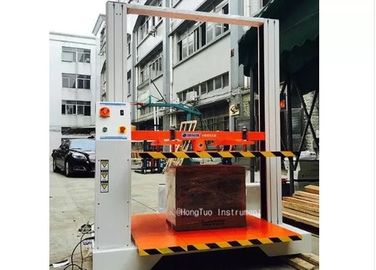

Full Intelligent Computer Control Carton Compression Strength Tester / Testing Machine / Equipment / Instrument

Full Intelligent Computer Control Carton Compression Strength Tester / Testing Machine / Equipment / Instrument

    • Full Intelligent Computer Control Carton Compression Strength Tester / Testing Machine / Equipment / Instrument
    • Full Intelligent Computer Control Carton Compression Strength Tester / Testing Machine / Equipment / Instrument
  • Full Intelligent Computer Control Carton Compression Strength Tester / Testing Machine / Equipment / Instrument

    Product Details:

    Place of Origin: Dongguan China
    Brand Name: DahoMeter
    Certification: ISO,SGS
    Model Number: DH-CC-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: standard exporting package
    Delivery Time: 3 DAYS
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Carton Compression Tester Testing Before Deliver: Yes
    After-sale Customer Service: Yes Measuring Range: 10KN To 50KN
    Force Measurement Accuracy:: Better Than ±1% Force Resolution​:: 1/250000

    Full Intelligent Computer Control Carton Compression Strength Tester / Testing Machine / Equipment / Instrument





    Full intelligent computer control carton compression tester / Full carton compression tester / empty carton compression strength tester is a multifunctional standard carton quality inspection equipment, mainly used for the compression strength testing for various types of medium-sized corrugated cardboard boxes and the whole carton made up of other materials with a compression strength less than 50 KN, such as food and beverages, fast food and bread packaging,cosmetic packaging, beer packaging, grain and oil packaging, etc. This instrument has high control precision and advanced research technology. It is the most cost-effective universal carton compression tester.



    Detailed equipment parameters:






    Parameter item
    Technical index


    Measuring range
    10KN 20KN 50KN (The above 3 different ranges are available)


    Force measurement accuracy
    Better than ±1%



    Force resolution​

    1/250000


    Effective measuring range
    1-100%F.S


    Unit conversion
    N,kN,kgf,gf,lbf


    Accuracy of the indicating value
    Error of indication ±1%, Variation of indication≤1%


    Accuracy of position
    ≤0.01mm



    Degree of parallelism for the pressure plates

    ≤1mm


    Test speed
    (12.5±2.5)mm/min


    Return speed
    10~150 mm/min (can be set arbitrarily)



    Test space

    (W×D×H)


    500×500×500mm ,600×600×600mm, 800×800×800mm,

    1000×1000×1000mm, 1200×1200×1200mm,1500×1500×1500mm



    Display system

    Independent research and development test system, LCD display

    in English



    Printing function
    High-speed thermal printer(print content:serial number,the maximum value,the minimum value,peak value,average value,etc)



    can be used for holding pressure test.​

    (stacking test) holding pressure can be arbitrarily set


    Dynamical system

    AC variable frequency system



    Sensor
    CELTRON


    Frequency converter
    DELIXI


    Working power supply
    AC220V 50HZ


    Machine weight
    About 550kg


    Notes
    Test space size can be customized according to sample size



    are threThere descrie standard operating modes and their functions are bed below:


    Strength test: Measure the maximum pressure and displacement of the carton;
    Fixed value test: The overall performance of the carton can be detected based on the setting pressure value and displacement;
    Stacking test: According to the requirements of national standards, it can carry out stacking tests under different conditions such as 12 hours and 24 hours,etc.



    Meet the following criteria:



    GB/T 4857.4 "Pressure test method for packaging and transportation package"

    GB/T 4857.3 "Static load stacking test method for packaging and transport packages"

    ISO2872 "Packaging - Complete, Fully Loaded Transport Packages - Stress Test"

    ISO2874 "Packaging - Complete, Fully Loaded Transport Packages - Stacking Tests with Pressure Testers"

    QB/T 1048 "Cardboard and Carton Compression Tester"
