Double Disc Metallographic Sample Grinding and Polishing Machine Laboratory
►Application

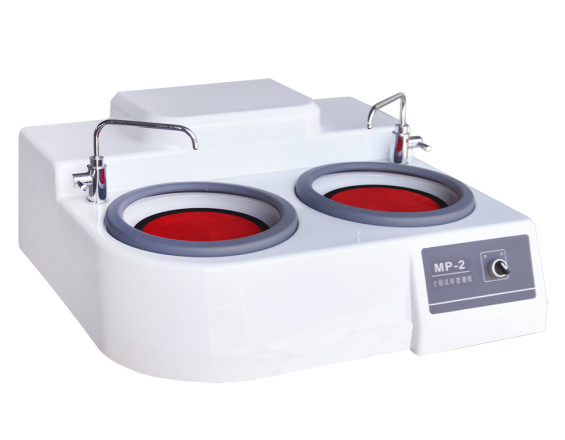

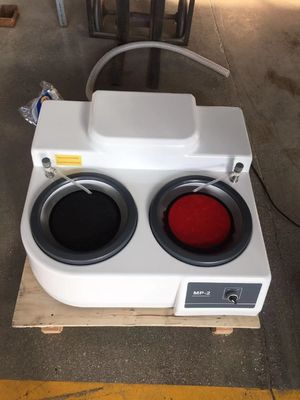

MP-2 Grinding and Polishing Machine suitable for metallographic specimen pre-grinding,grinding and polishing operation, is the necessary equipment to make metallographic specimen. It’s equipped with cooling device, used to cooling the sample when grinding, to prevent the sample overheating and destroy metallographic organization. The left disc used for grinding and the right disc used for polishing, so two people can operate at the same time. It’s easy to operation, safe and reliable, is the ideal sample preparation equipment for factories, research institutes and universities laboratory.
►Specifications
| Working voltage |
380V 50HZ (220V 50HZ custom-made) |
| Grinding disc diameter |
220mm rotate speed: 600r/min |
| Polishing disc diameter |
220mm rotate speed :800r/min(450/600 custom-made) |
| Electromotor |
YC7124,370W |
| Diameter |
780*780*400mm |
| Weight |
50kg |
