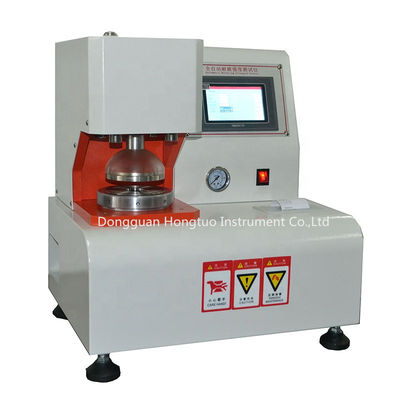

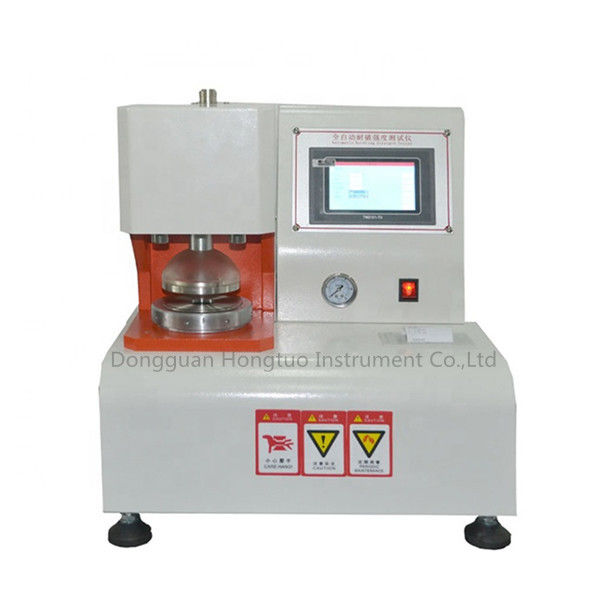

PLC Controlling Automatic Cardboard Paper Bursting Strength Tester
Tester summary:
Automatic Cardboard Paper Bursting Strength Testing Machine is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth and synthetic leather. This tester is fully automatic-type rupture strength tester, Just put into the testing material, the tester automatically detect, automatic testing, automatic hydraulic recoil and automatic computing, storage testing data and printing. It is an important tester for controlling quality of finished product and quality inspection
Applicable industry:
Automatic Cardboard Paper Bursting Strength Testing Machine applied to test the anti-breaking strength of boxes for packaging, which of electronics, electrical appliances, wires, hardware, bicycles, handbags, food, footwear, clothing, furniture.etc.
Features:

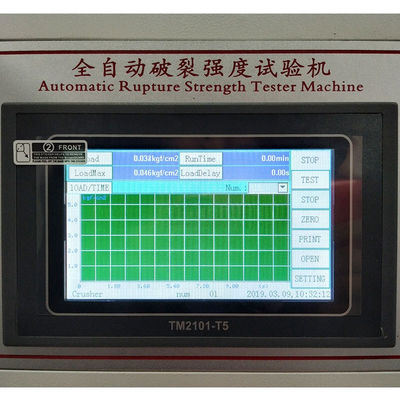

² Large color touch screen controller
² Equipped with printer. Print the test result immediately.
² Clamping ring material is stainless steel. Durable, fine mechanical property,green product and corrosion resistance are much better than other material.
² The structure is specially designed and high precision of test results.
² The equipment is easy and quick operations.
Main technical parameters:
| Bursting strength range |
250~5600kPa |
| Resolution |
1 kPa |
| Accuracy |
±0.5%FS |
| Pressure speed |
170±10ml/min |
| Specimen clumping force |
more than 690kPa |
| Clamping ring diameter |
31.5mm |
| Power |
AC220 V±10%,50Hz 120w |
| Dimension |
445×425×555mm |
