Place of Origin: | Dongguan,China |
Brand Name: | DahoMeter |
Certification: | ISO,SGS |
Model Number: | DH-CB-01 |
Minimum Order Quantity: | one set |
---|---|
Price: | negotiable |
Packaging Details: | standard exporting wooden package |
Delivery Time: | 5-7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 sets per month |
Usage: | Paper Burst Resistance Tester | Bursting Strength Range : | 250~5600kPa |
---|---|---|---|
Clamping Ring Diameter : | 31.5mm | Pressure Speed: | 170±10ml/min |
Specimen Clumping Force: | More Than 690kPa | Accuracy: | ±0.5%FS |
Testing Before Deliver: | Yes | After-sale Customer Service: | Yes |

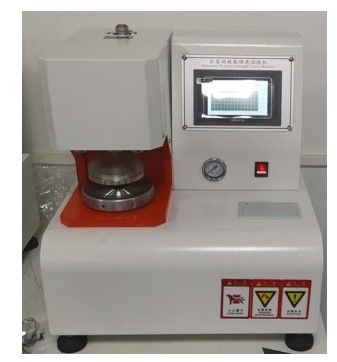

Paperboard Bursting Resistance Tester, Bursting Strength Determination for Paper and Paperboard
Tester summary:

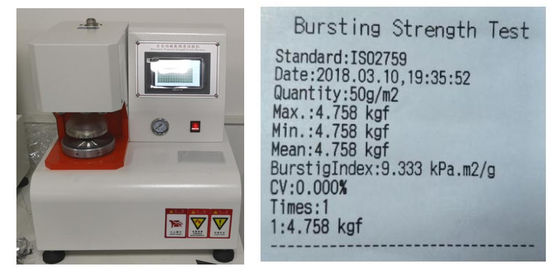

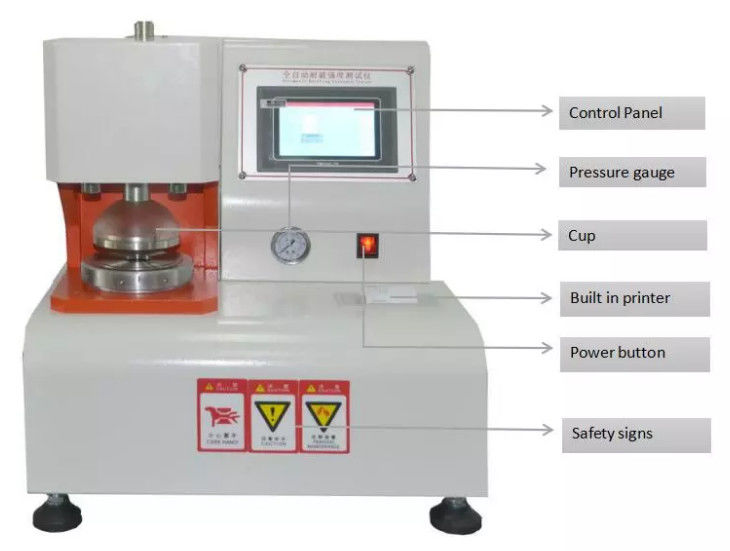

This instrument is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth and synthetic leather. This tester is fully automatic-type rupture strength tester,Just put into the testing material, the tester automatically detect, automatic testing, automatic hydraulic recoil and automatic computing, storage testing data and printing. It is an important tester for controlling quality of finished product and quality inspection
Corresponding standard:
operative standard:ISO-2759,GB-6545,JIS-P8112,L1018,ASTM-D2210,TAPPI-T403
Applicable industry:
It applied to test the anti-breaking strength of boxes for packaging, which of electronics, electrical appliances,
wires, hardware, bicycles, handbags, food, footwear, clothing, furniture.etc.
Main technical parameters:
Bursting strength range | 250~5600kPa |
Resolution | 1 kPa |
Accuracy | ±0.5%FS |
Pressure speed | 170±10ml/min |
Specimen clumping force | more than 690kPa |
Clamping ring diameter | 31.5mm |
Power | AC220 V±10%,50Hz 120w |
Dimension | 445×425×555mm |
