    Product Details:

    Place of Origin: Dongguan,China
    Brand Name: DahoMeter
    Model Number: DH-TC

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: 5-8 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Usage: Paper Tube Compression Strength Testing Machine, Paper Tube Pressure Tester, Paper Tube Compression Resistance Tester Testing Before Deliver: Yes
    After-sale Customer Service: Yes

    Paper Tube Compression Strength Testing Machine, Paper Tube Pressure Tester, Paper Tube Compression Resistance Tester





    ►Application

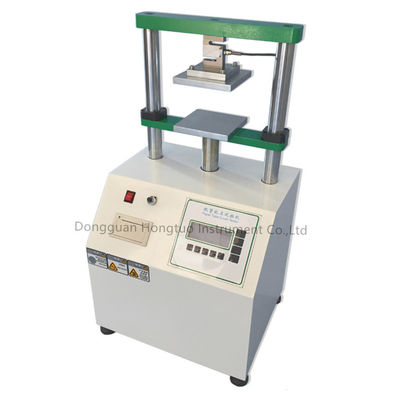

    This machine is the ideal test auxiliary appliance for paper, packaging, scientific,research, quality and other industries and department.it is used to test tube, yarn tape, paper tins, synthesis of tins, horizontal compressive strength. Applicable to paper tubes with an outer diameter of 200mm, also known as paper tube pressure tester, paper tube compression tester, is the basic instrument for paper tube compression resistance test, using high-precision sensors, high-speed processing chip design to ensure sampling accuracy.





    Specifications



    Model DH-TC
    Capacity 200,500,1000kg
    Induction Force sensors
    Displayer ZL-2000
    Resolution 1/20000
    Accuracy ± 0.5 %
    Units switch Kgf, Lbf, N.( Optional)
    Testing speed 10 ~ 200 mm/min
    Speed input methods Revolving
    The pressure plate area 30*30 cm
    The pressure plate spacing 30 cm Or designated
    Dimension 85×65×80cm
    Weight 130 kg
    Power AC220V 50Hz (According to national or specified)

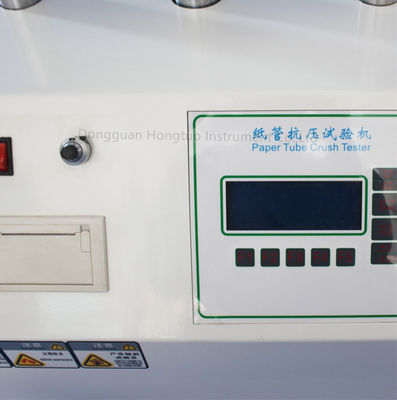

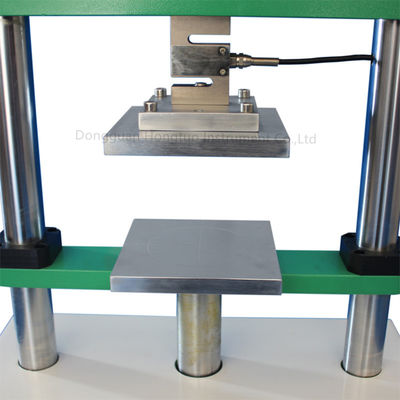

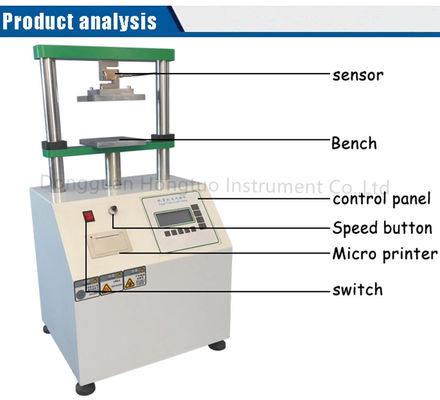

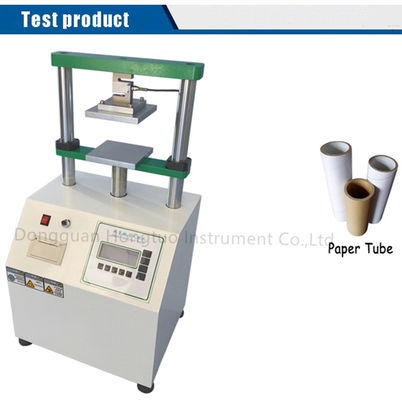

    ►Detail Images



    Paper Tube Compression Strength Testing Machine, Paper Tube Pressure Tester, Paper Tube Compression Resistance TesterPaper Tube Compression Strength Testing Machine, Paper Tube Pressure Tester, Paper Tube Compression Resistance TesterPaper Tube Compression Strength Testing Machine, Paper Tube Pressure Tester, Paper Tube Compression Resistance TesterPaper Tube Compression Strength Testing Machine, Paper Tube Pressure Tester, Paper Tube Compression Resistance Tester





    ►Packing



    Paper Tube Compression Strength Testing Machine, Paper Tube Pressure Tester, Paper Tube Compression Resistance Tester
