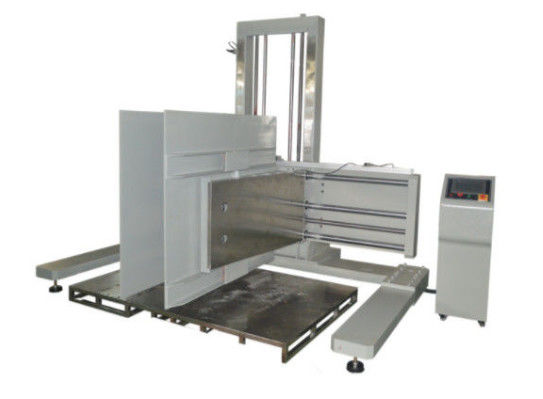

Carton Box Clamp Force Tester / Meter / Testing Machine / Equipment / Instrument for Package
The packaging anti-pinch testing machine is used to simulate the impact of the clamping force of the two plywood on the package and the cargo when the car loading and unloading of the package. The evaluation of the clamping strength of the package is applicable to the packaging of kitchenware, furniture, household appliances, toys and other products. It is especially suitable for the packaging anti-clamping strength test required by SEARS in the United States.
Design standard:
ASTM D6055, US SEARS Enterprise Standard, or Specific User Non-Standard Requirements
Main technical parameters:
- Plywood can achieve clamping, opening, rising, falling and other actions and cycle;
- Equipped with force sensor and digital display to calibrate clamping force;
- Clamping force: 10-2000kg optional;
- Sensor accuracy: 1/20000, measurement accuracy 1%;
- Lifting displacement: Lifting displacement 0-1200MM
- Clamping displacement: 100-2000MM, clamping displacement accuracy: ± 0.5MM;
- Clamping experiment speed: 12.7M/MIN (adjustable)
- Clamping plate size: 1200 ×1200mm；
- Clamping space: maximum W1200 × D1200 × H1200mm;
- Clamping space: minimum W400 × D1200 × H1200mm;
- Clamping speed: 5 ~ 50mm/min adjustable;
- Lifting space: 100 ~ 600mm adjustable, also can be according to user requirements;
- Outline: 3810 × D1900 × H2100mm
- Weight: about 780Kg；
- Power supply: 380V/50Hz；
- Control:Using PLC programming control, convenient operation, stable performance
- Power Unit: Kgf/N/Lbf
- Power Controller: LCD display shows maximum rupture force value
- Automatic stop mode: upper and lower limit settings stop;
- Clamping experiment speed: 12.7M/MIN (adjustable)
- Transmission mode: servo motor
- Protection device: leakage protection, travel limit device;
- Plywood sensors: four
Structure and working principle
1) Bottom plate:
The bottom plate adopts the welding parts, with high rigidity and strength, and the installation surface is processed after aging treatment;
Test size of the bottom plate: 2.5M long X 2.0M wide, there are warning lines around and at the center, the middle line is the reference line of the test piece at the same time, the test specimen center for this line when testing, and people can not stand on the bottom plate.
2) The transmission beam
In the transmission cross arm, the left and right clamping arm servo motors drive the screw to move at the same time (the speed is adjustable). The clamped specimen reaches the set force and is stopped by the clamp arm's built-in pressure sensor.
3) Servo system:
When the clamping force of the two arms of the transmission cross arm reaches and stops, the servo control station controls the servo to perform the actions of rising, stopping, and falling through the chain drive cross arm, and the person cannot stand on both sides when testing.
4) Electrical control system:
5) The whole machine adopts PLC control to realize the effective control of each station action.
6) The whole machine is equipped with a control cabinet to set the clamping force, clamping speed, and lifting and stopping. The manual or automatic test mode can be selected on the panel of the control cabinet. During the manual test, various actions can be manually controlled .During automatic testing. , to achieve consistent operation of each action, ensure safe production, and run according to the beat
7) There is an emergency stop button on the panel of the control cabinet.
8) In order to ensure the reliable operation of the whole machine, the main components are imported brands.
