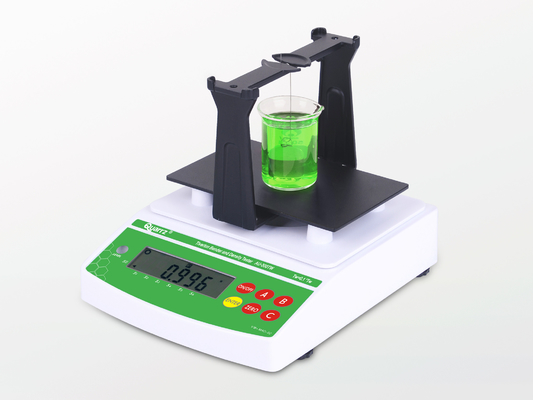

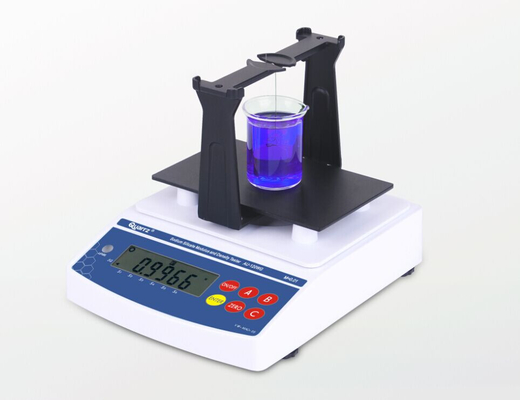

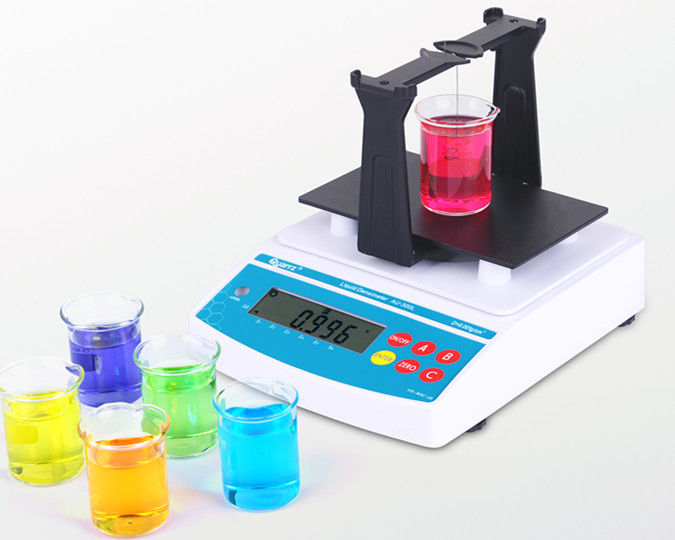

AU-300API Petroleum Hydrometer, Petroleum Densitometer, Petroleum Testing Equipment
The series products according to Archimedes principle.it is the new type density and API tester that has been researched and produced by Quarrz.density,API can be displayed automatically.Function of accuracy,quick measuring,convenient,reliability.In accordance with ASTM D1298 standard.it is suitable for petroleum and energy industry.
Technical Data:
(1) API° and specific gravity have the nonlinearity inverse relation.High specific gravity liquid will show lower API°.
(2)Every tonne barrelage of raw petroleum can be calculated according to API°.
(3)Specific gravity and w/gal has the linear relation.
(4)Raw petroleum can be classify as light crude > 31.1 API°;middle distillate is between 22.3 API°~31.1 API°,overweight crude < 10.0 API°
Technical Parameter:
AU-300API density resolution:0.001g/cm3,API resolution:0.1°API,concentration resolution:0.1%
AU-120API density resolution:0.0001g/cm3,API resolution:0.01°API,concentration resolution:0.01%
Features:
- Any kinds of petroleum liquids can be measured.
- density,API can be read directly.
- High precision,simple operation,stability and durability.
- Dynamic measuring,density value can be updated along with liquid formula.
- Function of water temperature setting and air buoyancy density compensation setting.
- Function of buzzer warning and overload warning.
- Including RS-232C interface.it is convenient to connect PC with printer.AU-40 can be chose to print data.
- Equiped with special windproof dustproof cover,convenient structure,sturdy and durable.
- Volatile liquid,corrosive liquid,viscous liquid,strong acid and strong base liquid can be measured quickly(relative accessories is available)
Measuring Procedure:
(1)Place beaker filled with sample on testing board.and deduct weight of pothhook.
(2)Make standard weight hanged on the pothpook and submerged into liquid to be tested.Density,API,concentration will be displayed.
Standard Accessories:
host,measurement plate,AU-20A standard liquid measurement
assembly.tweezer,thermometer,100g weight,windproof dustproof cover,measurement
support,power transformer.
AU-20A standard liquid measurement assembly:
two pcs of stainless steel pothpooks,two pcs of normal glass weight,one pcs of standard stainless steel weight,two pcs of beakers.
Optional Accessories:
AU-40 printer,AU-20B anti corrosive liquid measurement assembly,AU-20A standard liquid measurement assembly.
Anti-counterfeiting Announcement:
The bad and good products is intermingled on market today.Most customers had suffered a lot from the brand replacement products,shell brand products,simulation products,and transferring after-sale service products.To protect your rights,please identify seriously when choose goods.Following is the method to distinguish QUARRZ brand product.
- Method one:Start up,machine will display in sequence:brand,model(such as QUARRZ,AU-300S)
- Method two:After starting up,press ZERO button and B button at the same time,the machine will display in sequence:brand:model,factory number.of which information correspond to the one marked on machine.
- Method three:Check security code that generate automatically by machine number.
Technical Specification:
| Brand |
Quarrz |
| Item/Model |
AU-300API |
AU-120API |
| API resolution |
0.1°API |
0.01°API |
| AIP range |
0.1~100.0°API |
0.01~100.00°API |
| Concentration resolution |
0.1% |
0.01% |
| Concentration range |
0.1~100.0% |
0.01~100.00% |
| Density resolution |
0.001 g/cm3 |
0.0001 g/cm3 |
| Density range |
0.001—99.999g/cm3 |
0.0001—99.9999g/cm3 |
| Measuring model |
3 group liquid measuring mold be provided at the same time.can work with different standard weight |
| Measuring time |
Around 5 seconds |
| Measuring method |
Dynamic measuring,density value can be updated along with liquid formula. |
| Result display |
Density,API,concentration |
| Specific gravity measuring accessories |
Aluminum alloy specific gravity shelf,aluminum alloy measuring board |
| Function setting |
Water temperature setting,water density setting,standard measuring weights weight value and weight vaule in water setting |
| Measuring principle |
Archimedes principle displacement method |
| Measuring result verification method |
Distilled water verification |
| Output method |
RS-232C standard communication interface,which is convenient to output and print data |
| Standard accessories |
host,measurement plate,DE-20A standard liquid measuring
assembly,tweezer,thermometer,100g weight,windproof dustproof
cover,measurement support,power transformer
AU-20A standard liquid measurement assembly:
two pcs of stainless steel pothpooks,two pcs of normal glass weight,one pcs of standard stainless steel weight,two pcs of beakers.
|
| Optional accessories |
AU-40 printer,AU-20B anti corrosive liquid measurement assembly,AU-20A
standard liquid measurement assembly
|
| Power supply |
AC100V~240V 50HZ/60HZ Europe standard |
| Packing size |
Length42.5 cm X width 17.5 cm X height32.5cm |
